| Grade: | AISI 416, SUS416, EN 1.4005, DIN X12CrS13 | Product: | Free Machining 1.4005 X12CrS13 Stainless Steel Wire In Coil Or Cut Lengths Bar |
|---|---|---|---|
| Dia: | 0.3~16.0mm, Other Sizes On Request | Delivery State: | Annealed, Drawn |
| Surface: | Bright, Ground | Length: | In Coil, Spool Form Or Cut Lengths, Straightened Round Bar |
| High Light: | stainless steel spring wire,stainless steel coil wire |
||

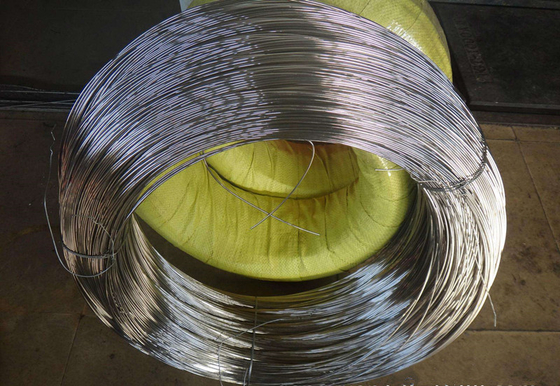

Free Machining 1.4005 X12CrS13 416 Cold Drawn Stainless Steel Wire
Grade 1.4005, X12CrS13, 416 is a free machining martensitic grade.
Stainless 416 in the annealed and heat treated conditions offer good corrosion resistance in moderately
aggressive, non-chlorinated media, fresh water, steam, many petroleum products and mold atmospheres.
Due to its high sulfur content, 1.4005 stainless is particularly suitable for machining.
The material is usually processed into wire after annealing and cold-twisting.
1.4005 is mainly used in turbine, motor and pump manufacture, in the form of screws, bolts, shafts, and valves, etc.
Standards
| EN | DIN | ASTM | JIS |
| 1.4005 | X12CrS13 | AISI 416, UNS S41600 | SUS416 |
Chemical composition ( weight % )
| Grade | C | Si | Mn | P | S | Cr | Mo |
| 1.4005 | 0.06~0.15 | 1.00 | 1.50 | 0.040 | 0.15~0.35 | 12.0~14.0 | 0.60 |
Forms of supply
Stainless steel drawn wire, in coil, spool form or cut lengths round bar, straightened
Typical applications
screw machining of very high number of parts, e.g.
