| Austenitic Grade: | SUS301-CSP | Product: | SUS301-CSP Stainless Steel Precision Strip |
|---|---|---|---|
| Thickness: | 0.02~1.5mm | Width: | 5~640mm |
| Temper Symbol: | ANN, 1/4H, 1/2H, 3/4H, FH, EH, SH | Standard Specification: | JIS G4313 Cold Rolled Stainless Steel Strip For Springs |
| High Light: | stainless steel precision strip,stainless steel foil |
||

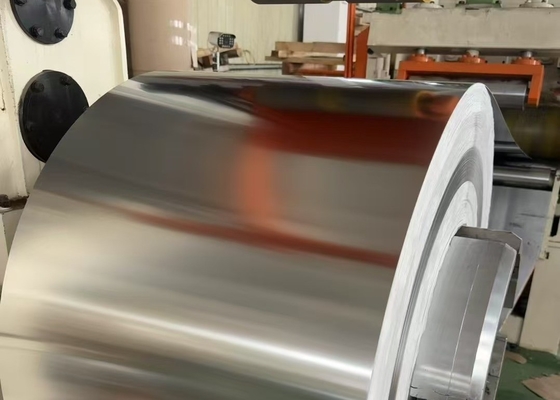

JIS SUS301-CSP 1/4H 1/2H 3/4H FH EH Cold Rolled Stainless Steel Strip In Coils
We supply wide and extreme thin high quality and precision strip products.
| Stainless steels | SUS301, SUS304, SUS304L, SUS316, SUS316L, SUS321, SUS309, SUS310, SUS410, SUS420J1, SUS420J2, SUS430, SUS630, SUS631 |
Products specifications
JIS G4313-2011 Cold rolled stainless steel strip for springs
| Thickness | 0.02~1.5mm |
| Width | 5~640mm |
Thickness tolerance
| Nominal thickness • Tolerances | Standard (+/-mm ) |
Precision (+/-mm) |
| <0.025 | 0.003 | 0.002 |
| 0.025~<0.04 | 0.003 | 0.002 |
| 0.04~<0.06 | 0.004 | 0.002 |
| 0.06~<0.1 | 0.005 | 0.003 |
| 0.1~<0.15 | 0.006 | 0.004 |
| 0.15~<0.20 | 0.007 | 0.005 |
| 0.20~<0.25 | 0.008 | 0.006 |
| 0.25~<0.30 | 0.012 | 0.007 |
| 0.30~<0.40 | 0.014 | 0.008 |
| 0.40~<0.50 | 0.017 | 0.009 |
| 0.50~<0.60 | 0.02 | 0.01 |
| 0.60~<0.80 | 0.025 | 0.012 |
| 0.80~<1.0 | 0.03 | 0.014 |
Width tolerance
| Width (mm) • Thickness (mm) | Under 0.25 | 0.25~0.6 | 0.6~1.0 excel. | 1.0~1.6 excel. |
| Under 80 | +/-0.05 | +/-0.07 | +/-0.11 | +/-0.15 |
| 80~160 excel. | +/-0.07 | +/-0.11 | +/-0.15 | +/-0.20 |
| 160~250 excel. | +/-0.1 | +/-0.15 | +/-0.2 | +/-0.25 |
Typical grades SUS301-CSP, SUS304-CSP
| Grade | Temper Symbol |
Hardness HV |
Yield strength | Tensile strength | Elongation |
| SUS301-CSP |
1/2H 3/4H FH EH |
310 min. 370 min. 430 min. 490 min. |
510 min. 745 min. 1030 min. 1275 min. |
930 min. 1130 min. 1320 min. 1570 min. |
10 min. 5 min. - - |
| SUS304-CSP |
1/2H 3/4H FH |
250 min. 310 min. 370 min. |
470 min. 665 min. 885 min. |
780 min. 930 min. 1130 min. |
- 3 min. - |
