Product Details:
Payment & Shipping Terms:
|
| Austenitic Stainless Steel: | AISI 301, EN 1.4310 | Product: | AISI 301 Stainless Steel Belt EN 1.4310 |
|---|---|---|---|
| Size Range: | 0.02~1.5X3~640mm | Temper: | ANN, 1/4H, 1/2H, 3/4H, FH, EH, SH |
| Forms Of Supply: | Strip, Cut To Lengths Sheet | Specification: | ASTM A666, EN 10151, JIS G4313 |
| High Light: | AISI 301 Stainless Steel Belt,EN 1.4310 Stainless Steel Band |
||

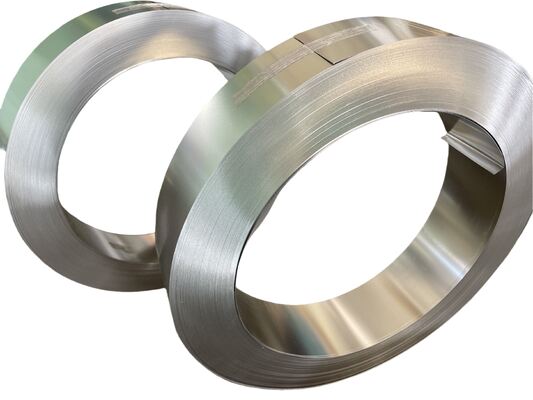

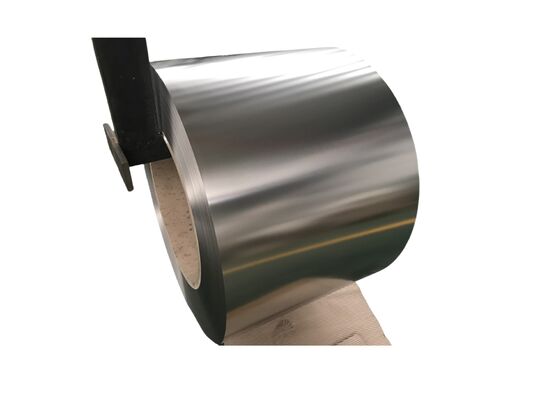

AISI 301 Stainless Steel Belt EN 1.4310 Stainless Steel Band / Narrow Strip
Austenitic stainless steel grade AISI 301, EN 1.4310 characterised by
AISI 301 is a high corrosion resistant stainless steel with good wear resistance.
Applications
springs, washers, clips, clamps, this makes it the universal choice for food and chemical industries
(cooling, freezing and drying processes).
Chemical composition % typical weight
| C | Si | Mn | Cr | Ni |
| 0.1 | 0.8 | 1.0 | 17.0 | 7.0 |
Properities
1/4 Hard
Ultimate Tensile Strength: 125 KSI min (860 MPA)
Yield Strength: (0.2% Offset) 75 KSI min/515 MPA min
Elongation: 25% Min
1/2 Hard
Ultimate Tensile Strength: 150 KSI min (1035 MPA min)
Yield Strength: (0.2% Offset) 110 KSI min (760 MPA min)
Elongation: 15%<.015", 18%>.015"
3/4 Hard
Ultimate Tensile Strength: 175 KSI min (1205 MPA min)
Yield Strength: (0.2% Offset) 135 KSI MIN/515 MPA MIN
Elongation: 10%< .015", 12%> .015"
Full Hard
Ultimate Tensile Strength: 185 KSI min (1275 MPA min)
Yield Strength: (0.2% Offset) 140 KSI min (965 MPA min)
Elongation: 8% < .015", 9% > .015"
Extra Full Hard Ultimate
Tensile Strength:
270 KSI min< .014" (1860 MPA min)
250 KSI min .015" to 017" (1720 MPA min)
225 KSI min .0171" to .019" (1552 MPA min)
205 KSI min .0191 to .021 (1435 MPA min)
185 KSI min >.0211 (1275 MPA min)
Spring Tempered Ultimate Tensile Strength: 185 KSI min (1275 MPA min)
Yield Strength: (0.2% Offset) 140 KSI min (965 MPA min)
Elongation: 8% < .015", 9% > .045"
For Details, please Contact
Wuxi Guanglu Special Steel Co., Ltd. – your productivity partner for precision strip steel.
We are looking forward to your enquiries.
