|Type:||Martensitic Precipitation Hardening Stainless Steel||Grade:||17-4PH, 630, 1.4542, S17400|
|Size Range:||0.1~10.0X420mm||Delivery Condition:||A, Solution Treated|
630 stainless steel,
17 7 ph stainless steel

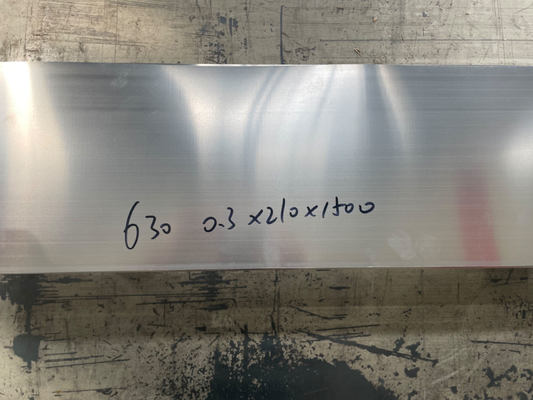

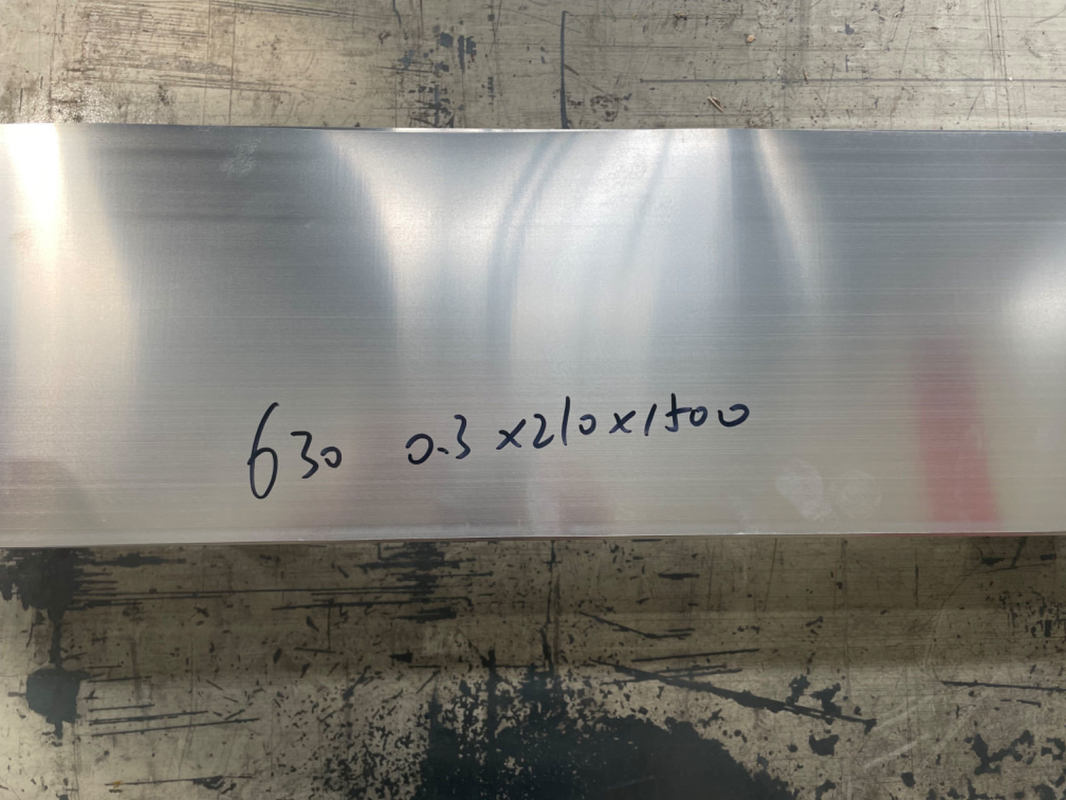

17-4PH Stainless Steel Sheet SUS630 Plate Cold Rolled Steel Strip In Coil
Grade 17-4 PH (1.4542) is perhaps the most common example of the precipitation hardening stainless grades.
It combines good corrosion resistance with high strength and good impact toughness.
|0.07 max||1.00 max||1.00 max||0.040 max||0.030 max||15.00~17.50||3.00~5.00||3.00~5.00||0.15~0.45|
The 17-4PH grade combines the following characteristics:
17-4PH develops its high strength from the precipitation of copper particles in its martensitic matrix.
It comes in various conditions denoted by H plus ageing temperature in °F, for example H900, H1025 etc.
The higher the ageing temperature, the lower is the strength and the higher are the ductility and toughness.
The minimum 0.2% PS varies from 520 MPa to 1170 MPa depending on the condition.
The combination of high strength and good corrosion resistance finds uses in:
Drive shafts, bearings, gears, hydraulic rams, valve stems, load cells, bridge bearings, tensioning systems,
golf clubs, quick release pins, fasteners, aerospace, medical devices, food processing, conveying equipment,
fall arrest systems
17-4PH is the natural choice of high strength, corrosion resistant steel particularly where standard
martensitic grades like 431 aren’t quite good enough.
