Product Details:
Payment & Shipping Terms:
|
| Specification: | ASTM A582 / A582M | Product: | Free Machining Stainless Steel Bars |
|---|---|---|---|
| Material: | 303 416 420F 430F | Product Forms: | Stainless Wires In Coil Or Rods Cut Lengths, Straightened Bar |
| High Light: | 1.4418 stainless steel,1.4313 stainless steel |
||

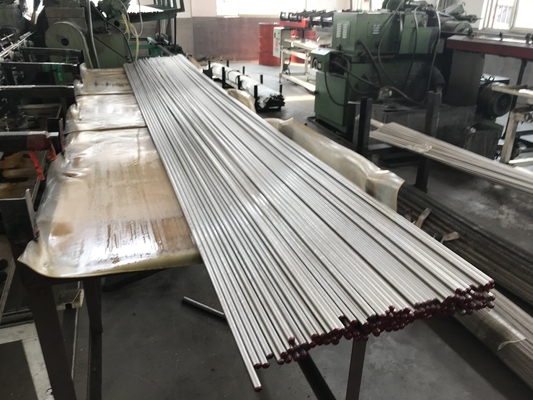

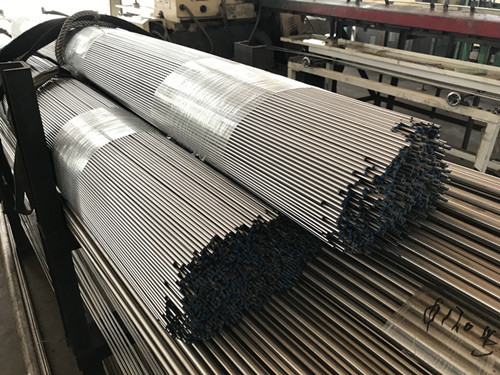

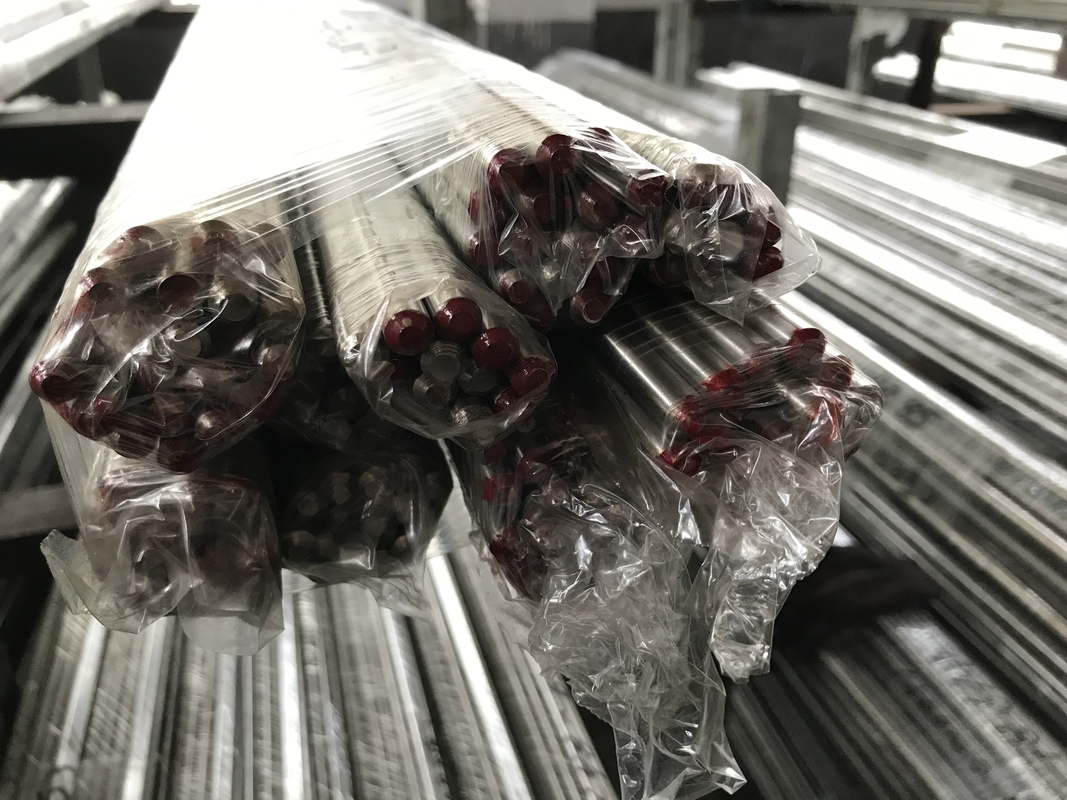

ASTM A582 Free Machining Stainless Steel Round Bars 303 416 420F 430F
We produce Free machining Stainless steel bars as per ASTM A582 / A582M Standard
Specification for Free-Machining Stainless Steel Bars.
303 is the most common “free-machining” grade using sulphur to produce sulphides allowing easier
chip-breaking during machining.
Applications: Threaded fasteners, shafts, valve bodies, precision measurement devices, pneumatic manifolds.
430F is used where a high level of magnetic permeability is required.
This derives from its fully ferritic structure. Its high level of machinability allows volume throughput of components.
Applications: Magnetic cores, solenoid valves, relays, fuel injection systems, anti-lock braking systems,
electromagnetic pumps.
416 is the most common “free-machining” martensitic grade using sulphur to produce sulphides allowing easier
chip-breaking during machining.
Applications: Shafts, axles, gears, valves, fasteners, golf club heads, sensors, precision machined
components, gun barrels, washing machine parts, dowel pins, clamps, collars.
Type 420F, a free-machining version of Type 420, is a hardenable 12% chrome steel with
higher strength, hardness, and wear resistance than Type 410.
Chemical composition wt%
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | Se |
| 303 | 0.15 | 1.00 | 2.00 | 0.20 | 0.15 min. | 17.0~19.0 | 8.0~10.0 | ||
| 303Se | 0.15 | 1.00 | 2.00 | 0.20 | 0.06 | 17.0~19.0 | 8.0~10.0 | 0.15 min | |
| 416 | 0.15 | 1.00 | 1.25 | 0.06 | 0.15 min | 12.0~14.0 | |||
| 420F | 0.30~0.40 | 1.00 | 1.25 | 0.06 | 0.15 min | 12.0~14.0 | 0.50 | ||
| 440F | 0.95~1.20 | 1.00 | 1.25 | 0.06 | 0.15 min | 16.0~18.0 | 0.50 | ||
| 430F | 0.12 | 1.00 | 1.25 | 0.06 | 0.15 min | 16.0~18.0 |
