| Product: | XM-12 UNS S15500 15-5PH | Size Range: | 0.1~3.0X450mm |
|---|---|---|---|
| Specification: | AMS 5862, ASTM A693 | Product Forms: | Plate, Sheet And Strip |
| High Light: | 630 stainless steel,17 7 ph stainless steel |
||
Grade XM-12 UNS S15500 15-5PH Stainless Steel Sheet Plate And Strip Coil
15-5PH is a precipitation hardening alloy exhibiting high strength and hardness with moderate
corrosion resistance. Stainless alloy 15-5PH is a variant of the older 17-4PH and 15-5PH was
designed to have greater toughness than UNS S17400, especially in the through-thickness
(short transverse) direction.
Material 15-5PH is used in applications that require high transverse strength and toughness
such as engine parts, aircraft components, nuclear reactor components etc.
Standard
| AISI, ASTM | EN, DIN |
| 15-5PH, XM-12, S15500 | 1.4545, X5CrNiCu15-5 |
15-5 PH is a registered trademark of AK Steel
Chemical composition wt%
| C | Si | Mn | P | S | Cr | Ni | Cu | Nb |
| 0.07 | 1.00 | 1.00 | 0.040 | 0.030 | 14.00~15.50 | 3.50~5.50 | 2.5~4.5 | 0.15~0.45 |
ASTM A693 requirements call for Niobium plus Tantalum ( Ta ) = 0.15~0.45
Forms of supply

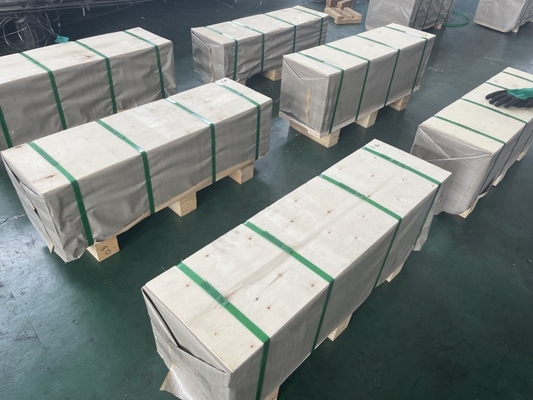

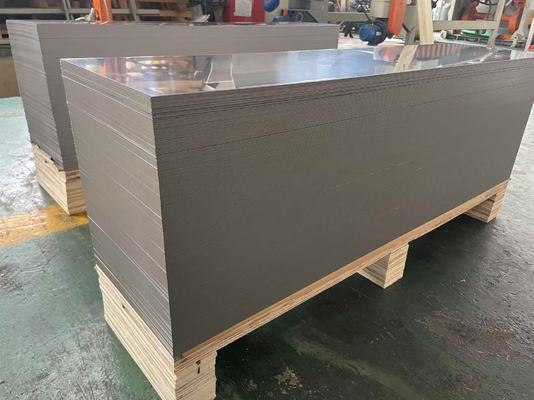

15-5PH stainless steel sheet, plate, strip and coil, materials supplied in Condition A
AMS 5862
ASTM A693 Plate, sheet and strip ( grade listed as XM-12, UNS S15500 )
