| Precipitation Hardening Stainless: | SUS631 | Product: | SUS631 Stainless Steel Sheet, Plate And Strip In Coil |
|---|---|---|---|
| Size Range: | 0.1~10.0X420mm | Delivery Condition: | Condition A, C |
| High Light: | 630 stainless steel,17 7 ph stainless steel |
||

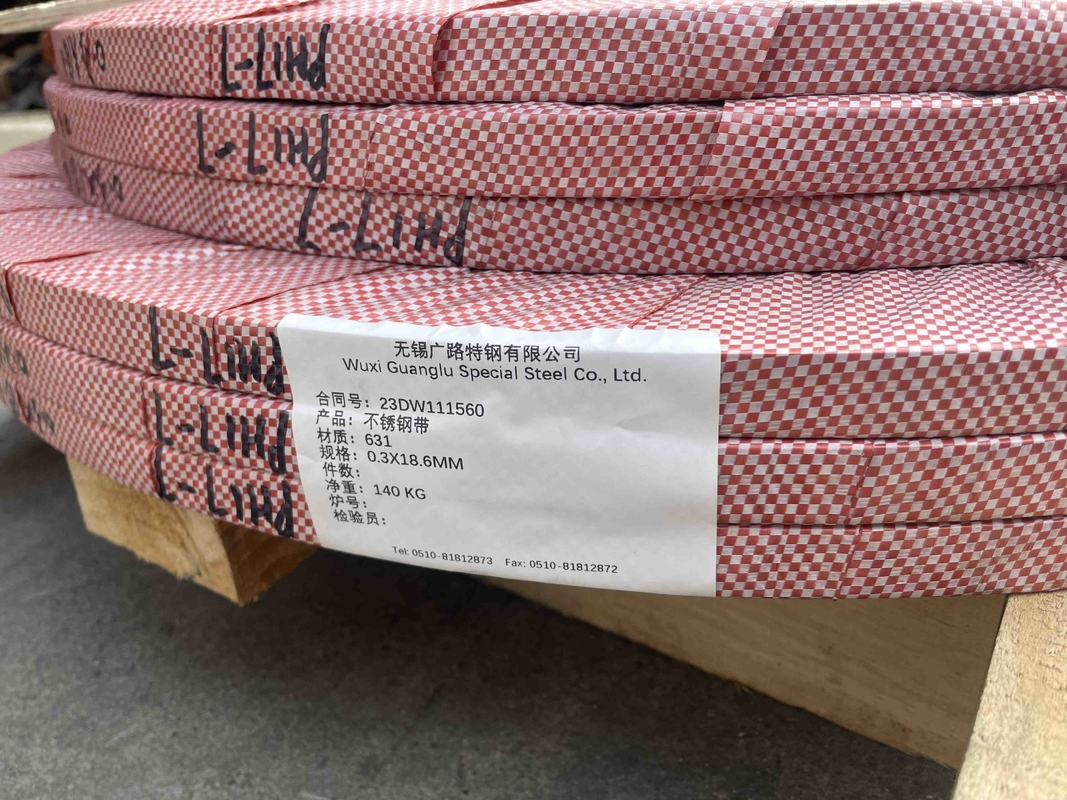

JIS SUS631 Cold Rolled Stainless Steel Strip In Coils Condition C 3/4H
SUS631 is a precipitation-hardened stainless steel that is well suited for aerospace and other applications
requiring high strength and good corrosion resistance and formability.
Type 17-7PH is a Chromium-Nickel-Aluminum, austenitic stainless steel.
It is the most formable of all PH grades and has the highest strength and hardness.
It is less magnetic than other PH grades and offers minimal distortion upon heat treatment.
This material maintains its valuable properties at temperatures up to 800° F (427° C).
Specification
| AISI | UNS | EN | DIN | AK Brand |
| 631 | S17700 | 1.4568 | X7CrNiAl17-7 | 17-7PH |
Chemical composition %wt
| C | Si | Mn | P | S | Cr | Ni | Al |
| 0.09 max | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 16.00~18.00 | 6.50~7.75 | 0.75~1.50 |
Product forms
Stainless 631 is available in Sheet, Strip, Plate
Specifications
Type SUS631, 17-7 PH Stainless Steel is covered by the following specifications:
JIS G4305 cold rolled stainless steel plate, sheet and strip
JIS G4304 hot rolled stainless steel plate, sheet and strip
JIS G4313 cold rolled stainless steel strip for springs
AMS 5528 Sheet, Strip and Plate
AMS 5529 Sheet, Strip Cold Rolled
AMS 5568 Welded Tubing
AMS 5644 Bars and Forgings (Cap. ASTM A 564 Type 631)
AMS 5678 Wire
AMS 5824 Welding Wire
MIL-S-25043 Cond. C, Sheet, Strip and Plate
ASTM A 693, ASTM A 313, ASTM A 564, ASTM A 579 and ASTM A 705
ASME SA 564, SA 693 and SA 705
UNS S17700
