Martensitic Grade: | 416 1.4005 X12CrS13 420F 1.4029 X29CrS13 Stainless | Type: | Free Machining Martensitic Grades |
---|---|---|---|
Material: | 416, 420F Stainless Steel Bar, Wire | Dia: | 0.3~450mm |
Delivery State: | Drawn, Annealed | Surface: | Black, Peeled, Polished, Ground |
High Light: | stainless steel round bar,1.4313 stainless steel |

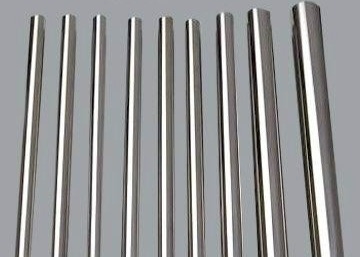

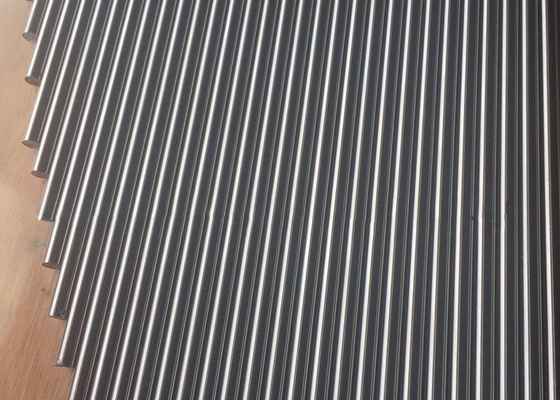

416 X12CrS13 420F X29CrS13 Stainless Steel Bar And Cold Drawn Stainless Steel Wire
Martensitic stainless steels are iron-chromium alloys that contain from 10% to 18% chromium
and can be hardened by heat treatment to high strength levels.
Type 410 stainless steel is the basic alloy in this grouping.
The martensitic types are the lowest in their ability to withstand corrosion.
Adding more carbon to the basic martensitic alloy increases hardness.
But, as carbon is increased, chromium content is also increased to as high as 18% to maintain
no less than 10% free chromium for corrosion resistance.
Other modified martensitic alloys contain additional elements, such as sulfur or selenium.
typical Free machinging grades ( EN 1.4005, 416 and EN 1.4029, 420F ).
Martensitic varieties find major applications in products that must resist atmospheric oxidation,
mildly corrosive chemicals, and wet or dry corrosion environments found in steam and gas turbine parts,
bearings, and cutlery. The martensitic types are magnetic in all conditions.
Martensitic Summary:
410 Base Grade |
⇒ | 416 Increased Sulfur for Higher Machining |
⇒ | 431 Increased Chromium for Higher Corrosion Resistance |
↓ 420 Add Carbon for Hardness & Strength
|
Grade | Description |
416, S41600, 1.4005, X12CrS13 |
416 stainless grade combines the following characteristics:
416 is the preferred free machining grade where higher strength than 303 is required. It is essentially grade 410 (1.4006) with sulphur for free machining. It is ideal for high throughput, intricate components.
Applications include: Shafts, axles, gears, valves, fasteners, golf club heads, sensors, precision machined components, gun barrels, washing machine parts, dowel pins, clamps, collars. |
420F, 1.4029, X29CrS13 | Free machnining of Type 420 stainless |
