Product Details:
Payment & Shipping Terms:
|
| Austensitic Grade: | EN 1.4301 DIN X5CrNi18-10 | Material: | EN 1.4301 DIN X5CrNi18-10 Stainless Steel Precision Strip |
|---|---|---|---|
| Dimension: | 0.02 To 1.5mm X 3 To 640mm | Surface: | 2B, 2R |
| Edge: | Cut, Round Corner, Deburred | Delivery State: | Solution Treated, Cold Worked ( As Rolled ) |
| High Light: | stainless steel precision strip,stainless steel foil |
||

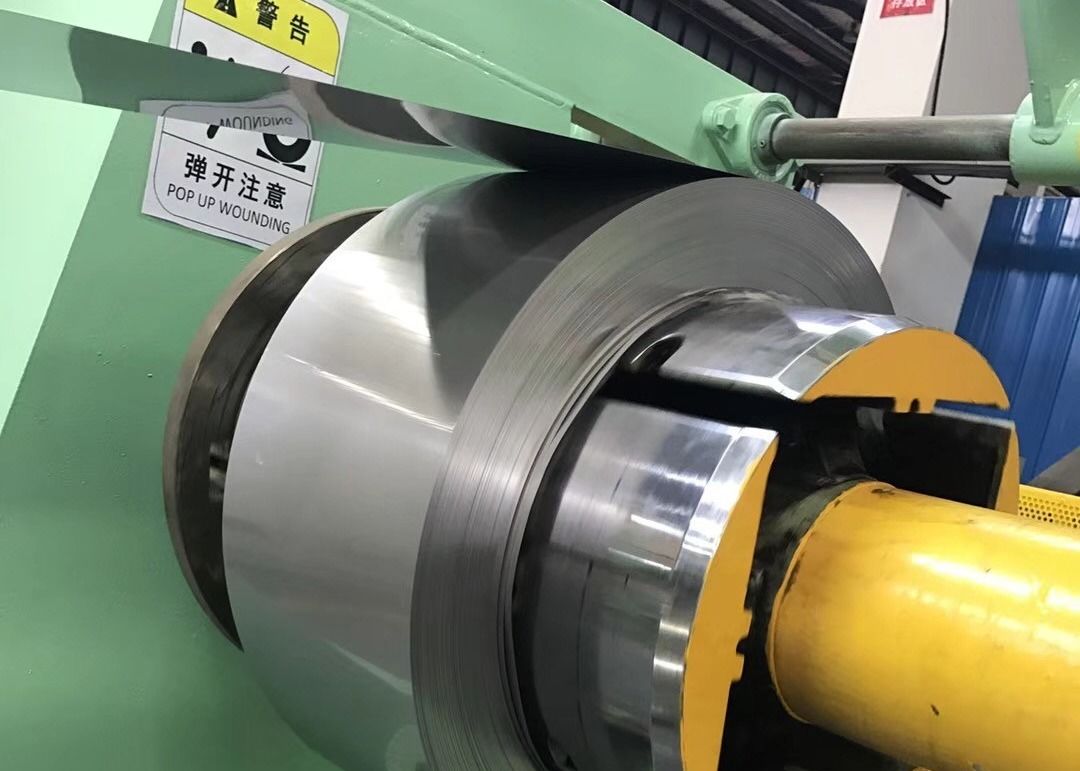

Narrow Strip EN 1.4301 DIN X5CrNi18-10 Stainless Steel Precision Strip
Type 304 Stainless Steel is the most widely used of the austenitic (chromium/nickel) stainless steels.
In the annealed condition it is essentially non-magnetic and becomes slightly magnetic with the application of cold work.
Chemical composition ( weight % )
| Grade | C | Si | Mn | P | S | Cr | Ni | N |
| 1.4301 | 0.07 max | 0.75 max | 2.00 max | 0.045 max | 0.030 max | 17.50~19.50 | 8.00~10.50 | 0.10 max |
Product forms
EN 1.4301, DIN X5CrNi18-10 stainless stee narrow strip, thin strip, slit strip, precision strip, cut to length sheets
Specifications
Type 304 stainless – ASTM A240, ASTM A666
Type EN 1.4301, DIN X5CrNi18-10, DIN EN 10088-2, 10151 stainless steel strip for springs
Delivery condition
Solution annealed, Cold worked ( as rolled )
| Grade | Designation | HV |
| 1.4301 | ANN | 200 max. |
| 1/4H | 220~250 | |
| 1/2H | 250~310 | |
| 3/4H | 310~370 | |
| FH | 370 min. |
Typical applications
Chemical equipment and piping, heat exchanger components, dairy and food handling equipment and utensils,
cryogenic vessels and components, architectural and structural applications exposed to non-marine atmospheres
