Ferritic Soft Magnetic 430FR Stainless Steel Round Bar For Solenoid Valves

Guanglu is really a professional supplier, they always give us technical advice and provide good quality products with very competitive price!

—— Thomas Hoover

We received your goods last thursday and we are very pleased with the quality of your products.

—— Lionel Lobo

I'm Online Chat Now

Ferritic Soft Magnetic 430FR Stainless Steel Round Bar For Solenoid Valves

Ferritic Soft Magnetic 430FR Stainless Steel Round Bar For Solenoid Valves
Ferritic Soft Magnetic 430FR Stainless Steel Round Bar For Solenoid Valves Ferritic Soft Magnetic 430FR Stainless Steel Round Bar For Solenoid Valves Ferritic Soft Magnetic 430FR Stainless Steel Round Bar For Solenoid Valves

Large Image :  Ferritic Soft Magnetic 430FR Stainless Steel Round Bar For Solenoid Valves

Product Details:
Place of Origin: China
Brand Name: Daway
Certification: SGS
Model Number: 430FR, 1.4105, X6CrMoS17
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: negotiable
Packaging Details: seaworthy
Delivery Time: 15 days after receipt 30% of value
Payment Terms: L/C, T/T
Supply Ability: 500 tons per month
Detailed Product Description
Type: Soft Magnetic Ferritic Stainless 430FR Application: Solenoid Valves, Injectors
Size: 1.0~25mm, Special Dimension On Request Length: 2100mm Approx.
Delivery State: Annealed Dia Tolerance: +/-0.02mm
High Light:

1.4418 stainless steel

,

1.4313 stainless steel

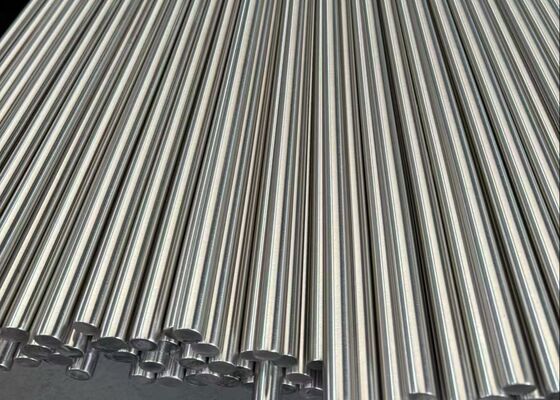

Ferritic soft magnetic 430FR stainless steel round bar for solenoid valves

Free Machining Ferritic stainless steel (400 Series) 430FR is a ferritic stainless steel designed
for soft magnetic components operating in corrosive environments.
The 17.00% - 18.00% chromium makes corrosion resistance similar to 430F.
The increased silicon content in this alloy allows increased mag-netic characteristics over 430F
in the annealed condition.

430FR has exhibited superior and consistent performance due to its higher electrical resistivity.
The alloy was developed for applica-tions that require a weak coercive magnetic force
(Hc =1.88 – 3.00 Oe [150 – 240 A/m]) as needed in solenoid valves.
Our controlled processing allows magnetic properties to be typically superior to industry norms.
430FR has an increased hardness over 430F, due to the increased silicon levels, reducing the
deformation that occurs during the oscillation impacts that occur in AC and DC solenoid valves.

430FR is chemically balanced to provide superior ma-chinability and deliver heat to heat consistency
that is unsur-passed in the industry. Once an optimum machining setup has been established,
machinists can take advantage of increased machining efficiency rates (run ―lights-out‖ production).

Standards

ASTM EN 10088-3
430FR, ASTM A838 Alloy 2 1.4105, X6CrMoS17


Applications

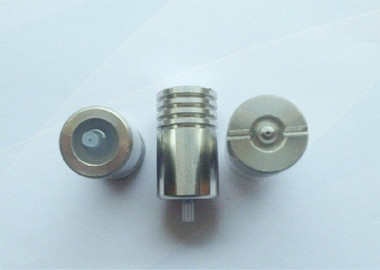

  • Solenoid valves
  • Injectors


Available forms
Cold drawn stainless steel bars, Turned bars, Ground bars
Magnetically annealed, mill annealed, as drawn

Mechanical properities ( typical )

Tensile strength 450~550 Mpa
Yield strength 0.2 320~450 Mpa
Elongation 25% min.
Reduction of Area 40% min.
Hardness 80~88 HRB


Magnetic and Electrical properities

Magnetic annealed and ground bars
Relative Permeability (μ) 1200 - 2200
Coercive Magnetic Field intensity (Hc) 150 - 240 A/m
Residual Flux Density (Br) 0.30 - 0.75 G
Saturation Flux Density (Bs) 1.6 T



For Details, please Contact



WUXI GUANGLU Special Steel Co., Ltd.

Stainless martensitic • precipitation hardening steel • stainless ferritic — Our answer to your needs
