AISI 420MoV Stainless Steel Sheet EN 1.4116 Plate

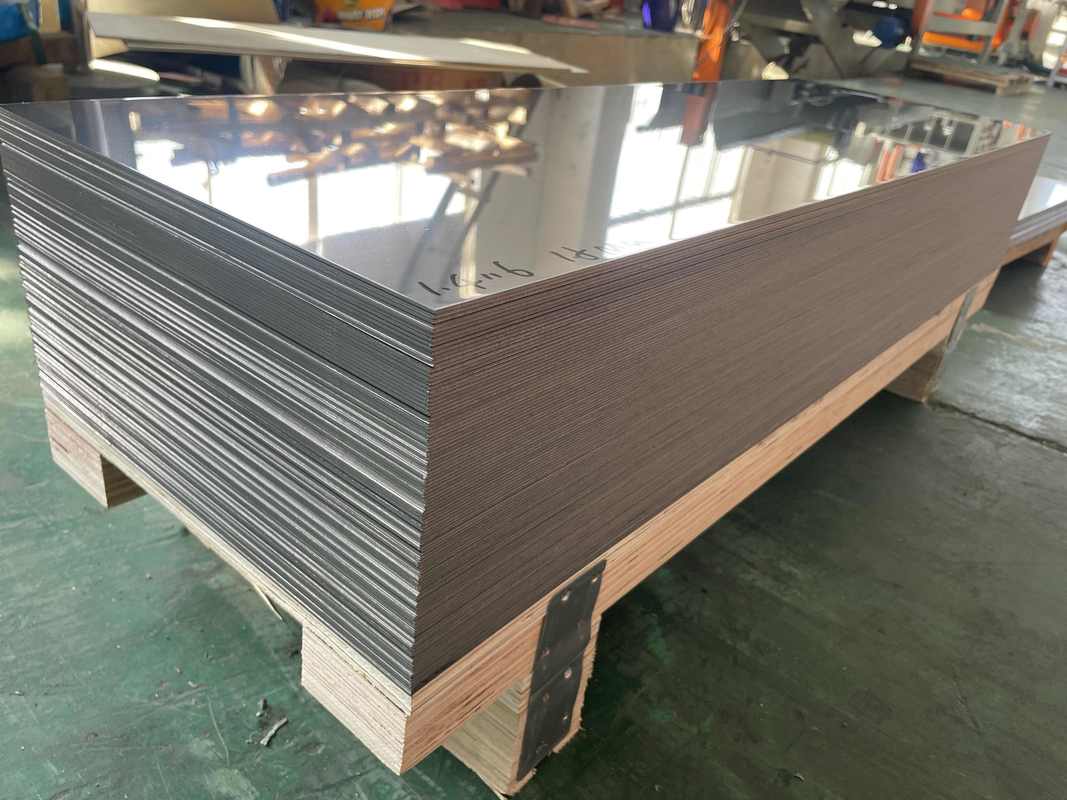

Large Image : AISI 420MoV Stainless Steel Sheet EN 1.4116 Plate

Product Details:

Place of Origin:	China
Brand Name:	Daway
Certification:	EN 10204 3.1
Model Number:	AISI 420MoV EN 1.4116 DIN X50CrMoV15
Document:	X50CRMOV15 DATA SHEET.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 ton
Price:	negotiable

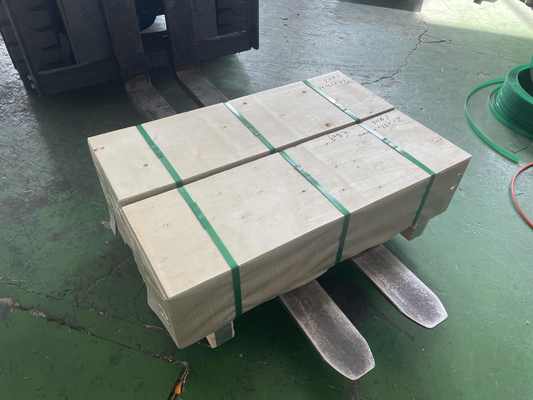

Packaging Details:	seaworthy
Delivery Time:	15 days after receipt 30% of value
Payment Terms:	T/T
Supply Ability:	500 tons per month

Contact Now

Detailed Product Description

Material:

AISI 420MoV EN 1.4116 DIN X50CrMoV15

Size:

0.1~10.0x1250mm

Delivery State:

Annealed

Surface:

2B, No.1

Highlight:

AISI 420MoV Steel Plates

DIN X50CrMoV15 Steel Plates

DIN X50CrMoV15 Steel Sheets

AISI 420MoV EN 1.4116 DIN X50CrMoV15 Stainless Steel Sheets And Plates

This is a medium carbon martensitic stainless steel with moderate corrosion resistance good strength

and the ability to obtain and keep excellent hardness (Rc 56) and wear resistance.

Material

W.-nr. 1.4116

DIN X50CrMoV15 )

0.45 ~ 0.55

1.00 max

14.00 ~ 15.00

0.50 ~ 0.80

0.10 ~ 0.20

X50CrMoV15 - a special alloy for knives, blades

X Stainless steel

50 0.5% carbon - the carbon content is significant for the sharpness

Cr Chromium for stain-resistant properities

Mo Molybdenum enhances the stain-resistant properities

V Vanadium for hardness and edge retention

15 Contents of chromium in % ( 15% )

Special characteristics

razor sharp
long-lasting cutting edge
high stain resistance
easily restorable edge

Mechanical properities ( to EN 10088-2 )

( Tensile strength ) N/mm2

( elongation ) %

A80

( elongation ) %

Harness

max. 850

≥ 12

≤ 280

Hardened and tempered approx. 55 - 57 HRC.

Heat treatment

Hardening

Hardening temperature	Cooling	Holding time
980 - 1050°c	Oil / Air	3.5 min/mm

Tempering

Tempering temperature	Holding time	Hardness
150 - 200°c	1 - 2 hours	55 - 57 HRC

For Details, please Contact

WUXI GUANGLU Special Steel Co., Ltd.

Stainless martensitic • precipitation hardening steel • stainless ferritic — Our answer to your needs

Tel: +86 510 81812873

Email: export@guanglusteel.com

AISI 420MoV Stainless Steel Sheet EN 1.4116 Plate

Tag:

Contact Person: Mr. Paul

Tel: 86-510-81812873

Fax: 86-510-81812872
