Creep Resistant Material X22CrMoV12-1 X39CrMo17-1 Stainless Steel Sheets

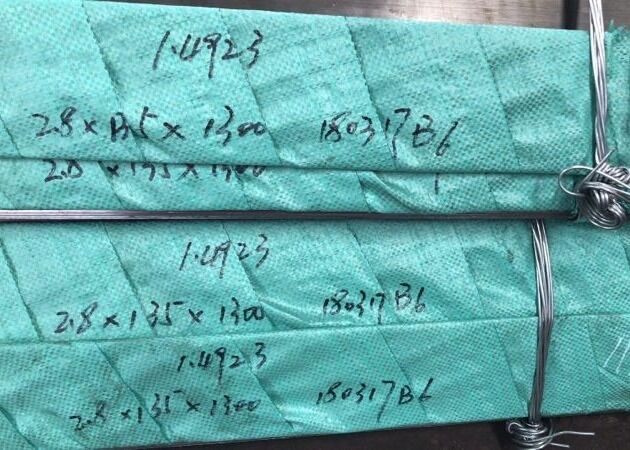

Large Image : Creep Resistant Material X22CrMoV12-1 X39CrMo17-1 Stainless Steel Sheets

Product Details:

Place of Origin:	China
Brand Name:	Daway
Certification:	SGS
Model Number:	X22CrMoV12-1 (1.4923) and X39CrMo17-1 (1.4122)

Payment & Shipping Terms:

Minimum Order Quantity:	1 ton
Price:	negotiable
Packaging Details:	seaworthy
Delivery Time:	15 days after receipt 30% of value
Payment Terms:	T/T
Supply Ability:	100 tons per month

Contact Now

Detailed Product Description

Material:

X22CrMoV12-1 (1.4923) And X39CrMo17-1 (1.4122)

Size:

0.1~10.0*5~300mm

Delivery State:

Annealed

Typical Application:

Disc Washers

Highlight:

1.4923 High Temperature Steel Sheets

X39CrMo17-1 High Temperature Steel Sheets

1.4923 Stainless Steel Sheets

High-temperature stainless steels X22CrMoV12-1 (1.4923) and X39CrMo17-1 (1.4122)

High-temperature materials

DIN X22CrMoV12-1 EN 1.4923

This chromium-molybdenum-vanadium steel according to DIN EN 10269 that can be quenched

and tempered has proved very well for the use of heat-resistant disc springs.

DIN X39CrMo17-1 EN 1.4122

This is a chromium-molybdenum alloyed steel according to DIN EN 10088-2 that can be quenched and tempered.

This material grade has also proved very well for the use of heatresistant disc springs.

Please bear in mind that both steel grades mentioned are not considered as corrosion-resistant steel grades.

Grade	C	Si	Mn	Cr	Ni	Mo	V
1.4122	0.33~0.45	1.00 max	1.00 max	15.5~17.5	1.00 max	0.8~1.3	-
1.4923	0.18~0.24	0.5 max	0.4~0.9	11.0~12.5	0.3~0.8	0.8~1.2	0.25~0.35

* disc washers manufacturers: Mubea
