JIS SUS420J1 Stainless Steel Sheets AISI 420 Stainless Plates For Brake Disc Motorcycle

Guanglu is really a professional supplier, they always give us technical advice and provide good quality products with very competitive price!

—— Thomas Hoover

We received your goods last thursday and we are very pleased with the quality of your products.

—— Lionel Lobo

It is our pleasure to work with Guanglu, a reliable partner. Thanks.

—— Sutthichai Khumrat

I'm Online Chat Now

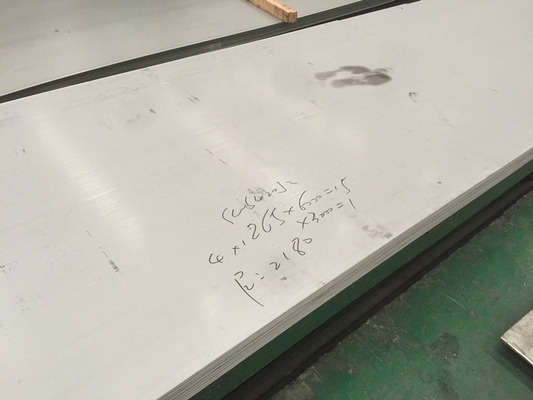

JIS SUS420J1 Stainless Steel Sheets AISI 420 Stainless Plates For Brake Disc Motorcycle

JIS SUS420J1 Stainless Steel Sheets AISI 420 Stainless Plates For Brake Disc Motorcycle
JIS SUS420J1 Stainless Steel Sheets AISI 420 Stainless Plates For Brake Disc Motorcycle JIS SUS420J1 Stainless Steel Sheets AISI 420 Stainless Plates For Brake Disc Motorcycle JIS SUS420J1 Stainless Steel Sheets AISI 420 Stainless Plates For Brake Disc Motorcycle

Large Image :  JIS SUS420J1 Stainless Steel Sheets AISI 420 Stainless Plates For Brake Disc Motorcycle

Product Details:
Place of Origin: China
Brand Name: Tisco
Certification: SGS
Model Number: JIS SUS420J1, AISI 420A
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: negotiable
Packaging Details: seaworthy
Delivery Time: 15 days after receipt 30% of value
Payment Terms: L/C, T/T
Supply Ability: 500 tons per month
Detailed Product Description
Martensitic Grade: JIS SUS420J1, AISI 420A Product: SUS420J1 AISI 420 Stainless Steel Sheets, Plates
Application: Manufacturing Of Disc Brakes For Motorcycles Typical Thickness: 3.5/4.5/5.5 Or 3.2/4.2/5.2mm
High Light:

AISI420 Stainless Steel Sheets

,

SUS420J1 Stainless Steel Sheets

,

Brake Disc JIS SUS420J1 Steel Plates

JIS SUS420J1 Stainless Steel Sheets AISI 420 Stainless Plates For Brake Disc Motorcycle​



Martensitic stainless steel JIS SUS420J1 for motorcycle brake disks.



SUS420J1 (13%Cr-0.2%C) and SUS420J2 (13%Cr-0.3%C) had mainly been used as rotor materials.

The disk brake is a system which slows down a motorcycle by frictional force generated when brake pads

clamp a rotor rotating in linkage with a wheel from both sides.

The rotor needs proper hardness ( generally, Rockwell hardness of 32–38HRC) to secure wear resistance

and deformation resistance, and also needs sufficient heat resistance to maintain these properties

under the heat generated by braking.



Characteristics

good heat resistance and corrosion resistance



Grades

Material no. C Cr
JIS SUS420J1 0.16~0.25 12.00~14.00
JIS SUS420J2 0.26~0.35 12.00~14.00



Product forms

Hot rolled stainless steel sheets, plates, cut to lengths, coil processed products,

grades JIS SUS420J1 and SUS420J2

typical thickness 3.5/4.5/5.5mm or 3.2/4.2/5.2mm.
