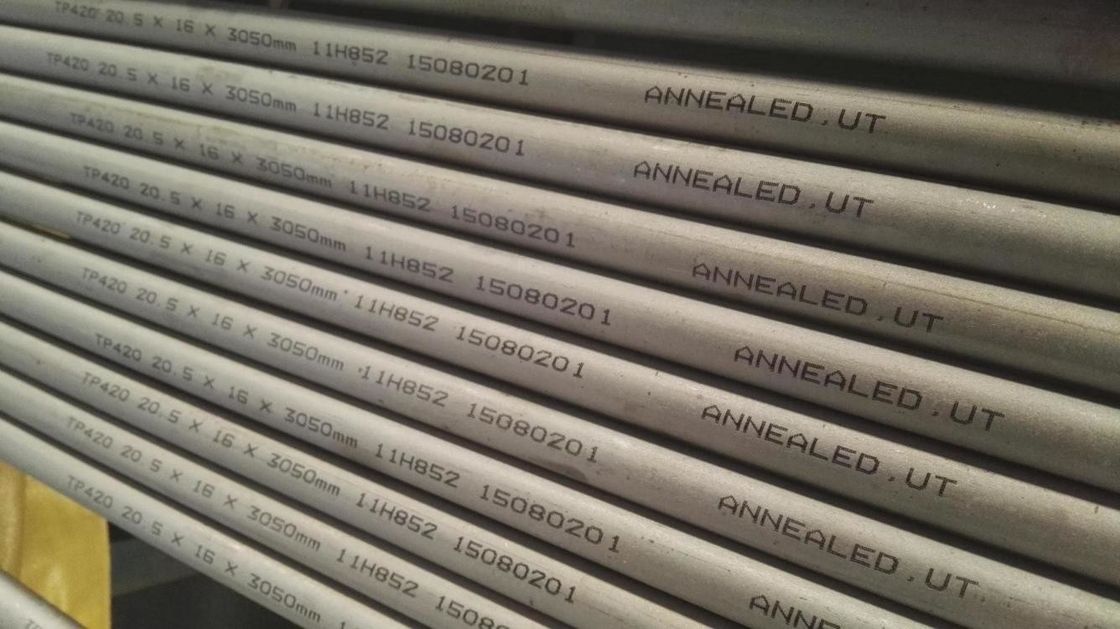

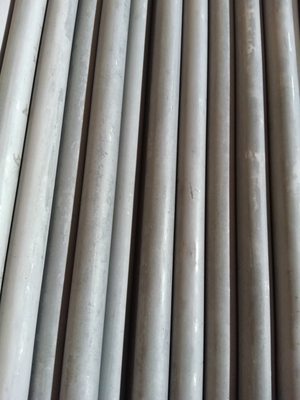

Stainless Seamless Steel Tubes / Pipes TP420 ( JIS SUS420J1 / SUS420J2 )

Stainless Seamless Steel Tubes / Pipes TP420 ( JIS SUS420J1 / SUS420J2 )

Type 420 UNS S42000 Stainless Steel provides both outstanding corrosion resistance and exceptional

wear resistance. To obtain the best possible strength and wear resistance, oil quenching alloy 420 at a temperature

between 1800° F and 1950° F.

Because of its air hardening properties, type 420 Stainless Steel is not often welded.

When welded with stainless steel type 420, preheat the steel to a temperature between 300° F and 400° F.

After welding, temper the work piece at temperature for two hours. When hot working, it is recommended to

gradually raise the temperature to 1400° F and then gradually raise the temperature to anywhere from 2000° F to 2200° F.

While working, avoid letting the work temperature drop below 1600° F by frequently reheating the steel.

To prevent cracking, furnace cool the work piece slowly after working.

Any extreme cold forming will cause alloy 420 Stainless Steel to crack, but it can endure minor cold work.

Grade 420 stainless steel is a higher carbon version of 410; like most non-stainless steels it can be hardened by heat treatment.

It contains a minimum of 12 per cent chromium, just sufficient to give corrosion resistance properties.

It has good ductility in the annealed condition but is capable of being hardened up to Rockwell Hardness 50HRC.

Best corrosion resistance is when the metal is hardened and surface ground or polished.
