Product Details:
Payment & Shipping Terms:
|
| Material: | TP420 ( JIS SUS420J1, SUS420J2 ) Martensitic Stainless Steel | Product: | TP420 Stainless Steel Tube / Pipe |
|---|---|---|---|
| Dimension: | OD 6 ~ 219 X WT 0.5 ~ 25.4mm | Surface Finish: | Pickled Or Polished |
| Delivery Condition: | Annealed | Standard: | ASTM A268/A268M |
| Highlight: | seamless stainless steel tubing,stainless steel round tube |
||

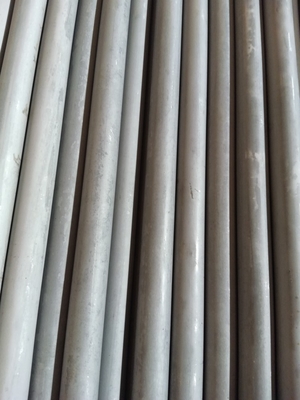

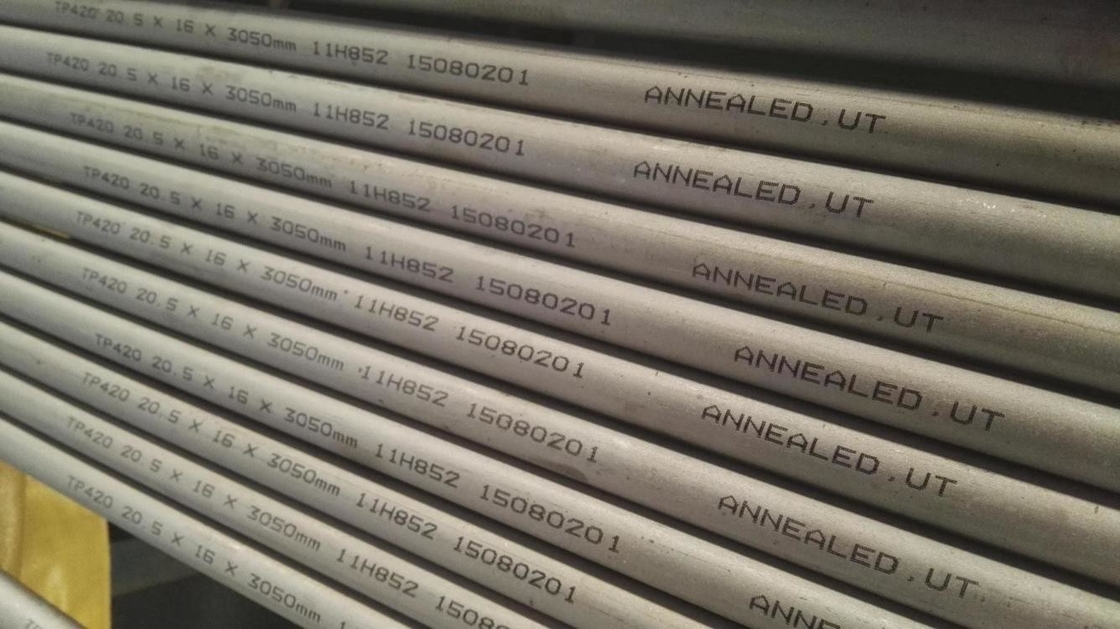

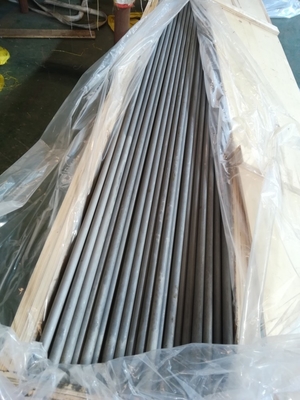

ASTM A268 TP420 SUS420J1 , SUS420J2 Seamless Stainless Steel Tube / Pipe
Standard specification
ASTM A 268/A 268M standard for seamless and welded ferritic and martensitic stainless steel tubing
Stainless ferritic and martensitic steel grades
|
TP405, TP410, TP429, TP430, TP420, TP431, TP440C, TP443, TP446-1 and TP446-2, TP409, TP439, S41500 ( 1.4313, X3CrNiMo13-4 ), TP430 Ti, TP XM-27, TP XM-33, TP468, 18Cr-2Mo ( UNS S44400 ), 29-4 ( UNS S44700 ), 26-4-2 ( UNS S44800 ), 26-3-3 ( UNS S44660 ), 25-4-4 ( UNS S44635 ), UNS S44735, S32803, S40977, S43940, S42035, TP468, S46800 Precipitation hardening stainless steel TP630 ( 17-4PH, 1.4542 ) .. |
Production technology
Hot and Cold rolled ( drawn )
Delivery state
annealed
Surface finish
pickled or bright polished
Size
OD 6-219mm, WT 0.5-25.4mm
Tensile strength requirements
| Grade and UNS designation | Tensile strength Mpa, min | Yield strength Mpa, min | Elongation in 2'' % min. |
| TP405, S40500 | 415 | 205 | 20 |
| TP410, S41000 | 415 | 205 | 20 |
|
TP429, TP430, TP430Ti UNS S42900, S43000, S43036 |
415 | 240 | 20 |
| TP443, UNS S44300 | 485 | 275 | 20 |
| TP446-1, S44600 | 485 | 275 | 18 |
| TP446-2, S44600 | 450 | 275 | 20 |
| TP409, S40900 | 380 | 170 | 20 |
