|Material:||EN 1.4310 DIN X10CrNi18-8||Product:||Cold Rolled, Stainless Steeel Strip, And Spring Band Steel|
|Size Range:||0.02~1.5X3~640mm||Delivery Condition:||C1150, C1300, C1500, C1700, C1900|
|Surface Finish:||2H||Edge:||Cut, Rounded, Deburred|
2H stainless spring steel strip,
C1700 flat spring steel strips,
EN10151 thin spring steel strips
EN 10151 W.Nr.1.4310 ( AISI 301 ) Stainless Spring Steel Strip 2H
Stainless spring steel strip, material number EN 1.4310, DIN X10CrNi18-8, AISI 301, JIS SUS301-CSP
quality according to EN 10088-2, DIN EN 10151, ISO 6931-2, ASTM A666, JIS G4313.
1.4310 is a corrosion resistant steel with good formability in soft condition.
The work hardening is greater than other austenitic stainless steels.
This is the basis for the excellent usability for spring strip with high tensile strength.
1.4310 is conditional weldable.
For machining high quality tooling is required, like for all stainless steels. Polishing is possible.
1.4310 in annealed condition shows no magnetism and becomes slightly magnetic when is cold formed
Thickness: 0.02 to 1.5mm
Width: 3 to 640mm
Tolerances are acc. to DIN EN 9445 P
Closer tolerances on request.
Conditions of edges
cut edges ( GK )
rounded edges ( AK )
deburred edges ( EK )
Forms of supply

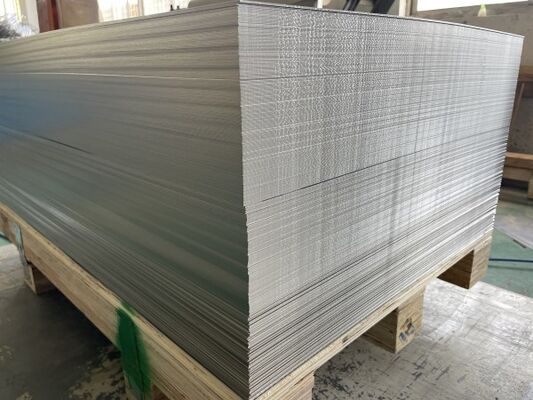

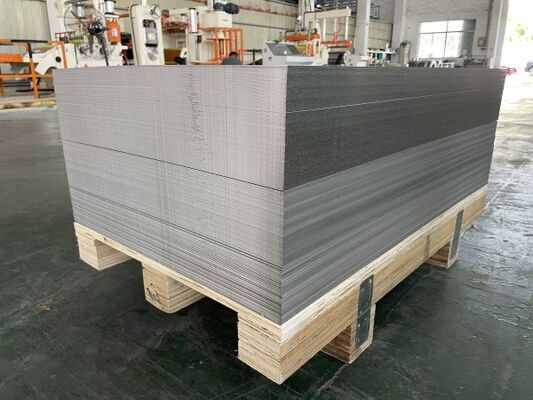

strip steel can be supplied in coils, or cut lengths
