Product Details:
Payment & Shipping Terms:
|
| Martensitic Stainless Steel: | AISI 415, S41500, F6NM, EN 1.4313, DIN X3CrNiMo13-4 | Product: | 1.4313 / F6NM / X3CrNiMo13-4 Stainless Steel Plate |
|---|---|---|---|
| Size Range: | 5~150X2100mm | Delivery Condition: | Annealed |
| High Light: | stainless strip steel,1.4028 stainless steel |
||
AISI / SAE 415 UNS S41500 Stainless Steel Plates EN 1.4313 DIN X3CrNiMo13-4
1.4313 / F6NM / X3CrNiMo13-4 is a 13% Cr-4% Ni-0.5% Mo martensitic stainless steel.
Its nickel content, associated with low carbon ensures better weldability, ductility, impact and fatigue
resistance than 13 Cr martensitic grades (410, 420).
The alloy has good corrosion resistance to fresh water and performs well in abrasive conditions.
It combines high mechanical properties, excellent toughness and weldability.
It is commonly used in turbines and flow control systems in the hydropower industries.
S41500 grade is specially designed for applications requiring high strength, high toughness and medium corrosion
resistance properties.
The chromium, nickel and molybdenum additions make the alloy resistant to corrosion in fresh water.
Typical applications are hydroelectric turbines and systems (blades, runners, gates, rings, shield plates,…),
hydropter wings to fight cavitation by high speed water.
Chemical composition %
| C | Si | Mn | P | S | Cr | Ni | Mo | N |
| 0.05 max | 0.70 max | 1.50 max | 0.040 max | 0.015 max | 12.00~14.00 | 3.50~4.50 | 0.30~0.70 | 0.020 min. |
Product forms

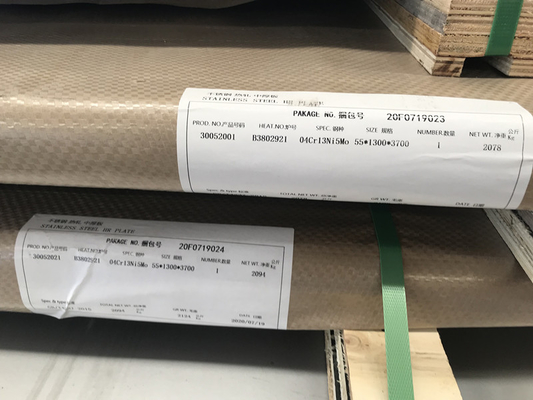

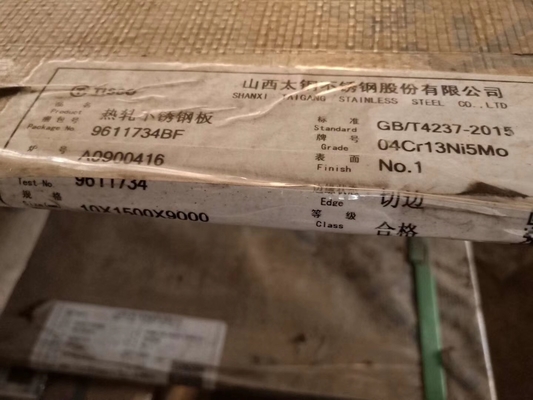

Stainless steel EN 1.4313 - AISI F6NM - S41500 Sheets / Plates hot rolled 1D
Round bars, forgings
