Product Details:
Payment & Shipping Terms:
|
Grade: | EN 1.4310, DIN X10CrNi18-8 | Material: | Stainless Steel Strip 1.4310 |
---|---|---|---|
Dimension: | 0.02~1.5x5~640mm | Delivery State: | Temper Rolled, 1/4H, 1/2H, 3/4H, FH, EH, SH |
Specification: | DIN EN 10151 Stainless Steel Strip For Springs | Surface: | 2H |
Highlight: | stainless steel precision strip,stainless steel foil |

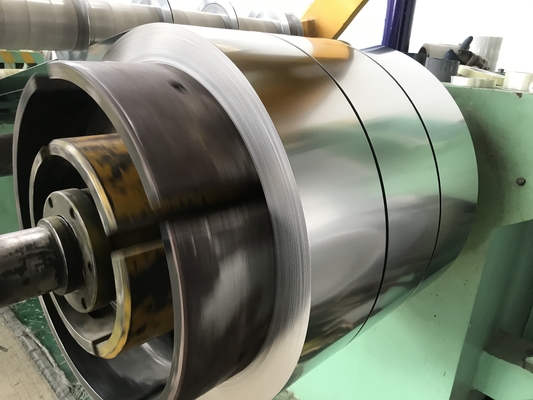

DIN EN 10151 Stainless Spring Steel Strip In Coil 1.4310
Chemical composition ( weight % )
C | Si | Mn | P | S | Cr | Ni | Mo | N |
0.05~0.15 | 2.00 max | 2.00 max | 0.045 max | 0.015 max | 16.00~19.00 | 6.00~9.50 | 0.80 max | 0.11 max |
Dimension
Thickness | Width |
0.02~1.5 | 3~640 |
Delivery state
Spring hard according to DIN EN 10151
Tensile strength level in work-hardened conditions
Designation | Tensile strength MPa |
+C850 | 850 to 1000 |
+C1000 | 1000 to 1150 |
+C1150 | 1150 to 1300 |
+C1300 | 1300 to 1500 |
+C1500 | 1500 to 1700 |
+C1700 | 1700 to 1900 |
+C1900 | 1900 to 2200 |
Edge condition
cut, deburred, round corner
For Details, please Contact
Wuxi Guanglu Special Steel Co., Ltd. – your productivity partner for precision strip steel.
We are looking forward to your enquiries.
