ASTM A268 TP409 UNS S40900 EN 1.4512 Stainless Steel Tubes ( Pipes )

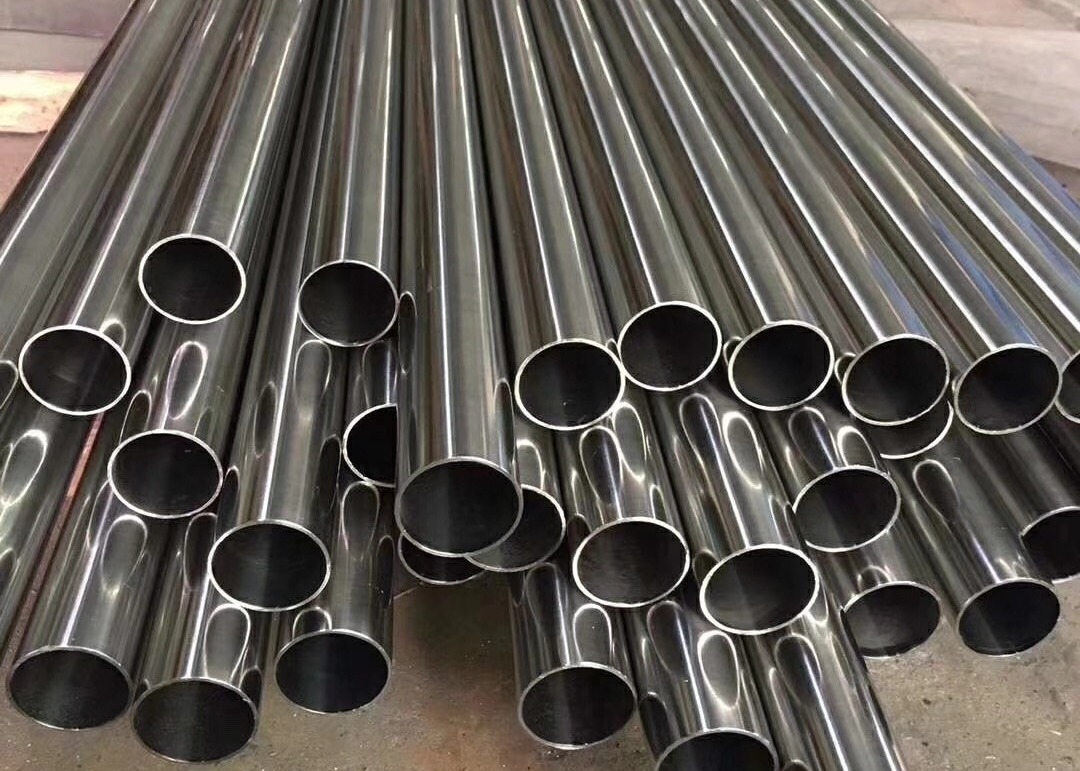

ASTM A268 TP409 , UNS S40900 , EN 1.4512 stainless steel tube

409 is a low cost ferritic stainless steel. Its dominant use is in vehicle exhaust systems,

so much so that it is often referred to as “muffler” grade.

This TP409 stainless grade combines the following characteristics:

• Basic corrosion and oxidation resistance
• Composition balanced for optimum formability
• Weldable only in thin sections due to fully ferritic structure
• Low cost and limited cost variation due to low alloy content

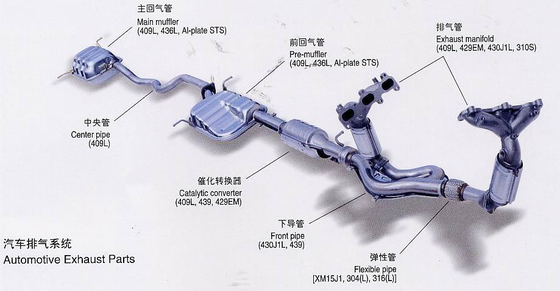

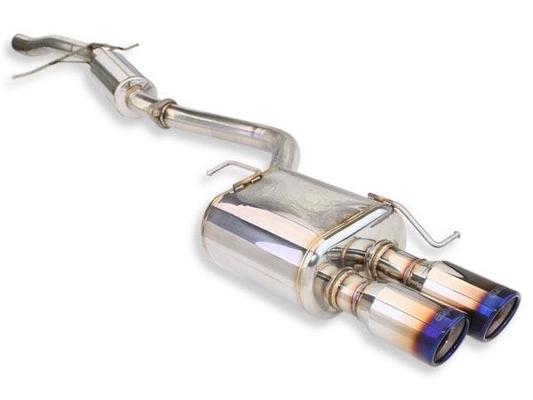

Automotive exhaust systems have to withstand aggressive conditions from high temperatures

at the manifold end, sulphuric acid condensate and de-icing salt. Given the severity of these conditions,

it can seem surprising that the 11% Cr 409 grade has met the challenge for many years.

Exhaust components are also required to be bent, expanded and pressed into all sorts of convoluted shapes.

The ability of a ferritic steel to meet these formability requirements is little short of amazing.

Applications include:
Heat exchangers, gas boilers, fuel filters.

Chemical composition ( weight % )

Mechanical properities
