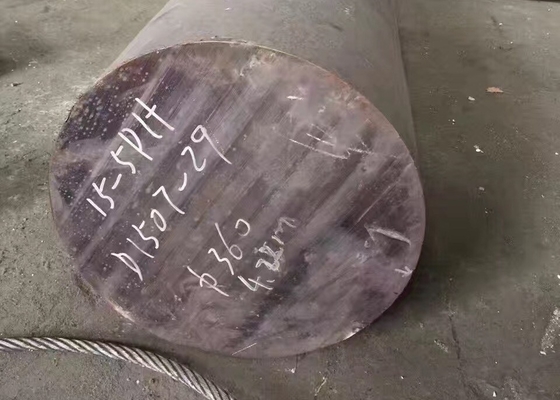

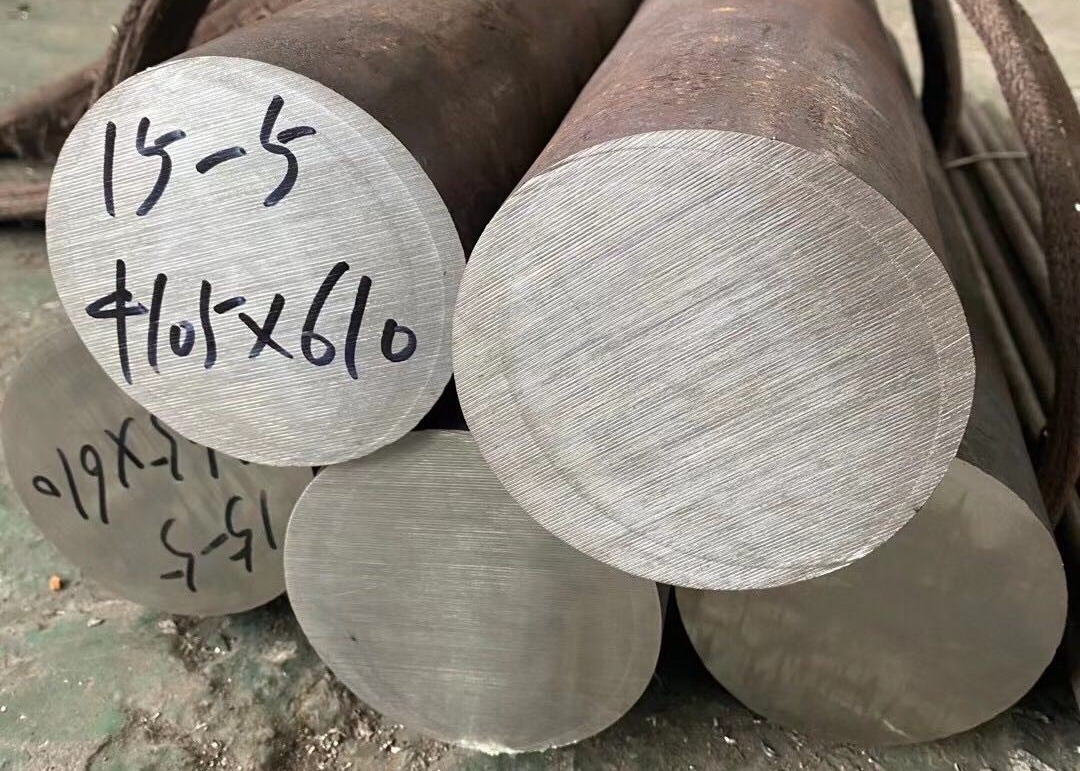

15-5PH EN 1.4545 DIN X5CrNiCu15-5 Stainless Steel Round Bars

15-5PH EN 1.4545 DIN X5CrNiCu15-5 Stainless Steel Round Bars
15-5PH EN 1.4545 DIN X5CrNiCu15-5 Stainless Steel Round Bars 15-5PH EN 1.4545 DIN X5CrNiCu15-5 Stainless Steel Round Bars

Large Image :  15-5PH EN 1.4545 DIN X5CrNiCu15-5 Stainless Steel Round Bars

Product Details:
Place of Origin: China
Brand Name: Daway
Certification: SGS
Model Number: 15-5 PH , EN 1.4545 , DIN X5CrNiCu15-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: negotiable
Packaging Details: seaworthy
Delivery Time: 15 days after receipt 30% of value
Payment Terms: T/T, L/C
Supply Ability: 500 tons per month
Detailed Product Description
Material: 15-5PH Stainless Steel Bar Dia: 5.0~450mm
Delivery Condition: Solution Treated, Aged Surface: Black, Peeled
Highlight:

stainless steel round bar

,

1.4313 stainless steel

Precipitation hardening 15-5 PH EN 1.4545 DIN X5CrNiCu15-5 stainless steel round bars



Type 15-5 PH is a martensitic precipitation-hardening stainless steel that provides high strength,

good corrosion resistance, good mechanical properties at temperatures up to 600°F (316°C)

and good toughness in both the longitudinal and transverse directions in both base metal and welds.

Short-time, low-temperature heat treatments minimize distortion and scaling.



Type 15-5 PH is the ferrite-free version of Type 17-4 PH stainless steel.

Both alloys are widely used in the aerospace, chemical, petrochemical, food processing, paper and

general metalworking industries.



C

Si

Mn

P

S

Cr

Ni

Cu

Columbium plus Tantalum

0.07 max

1.00 max

1.00 max

0.040 max

0.030 max

14.00~15.50

3.5~5.5

2.5~4.5

0.15~0.45



Physical Properties

 Melting Point: 2560 - 2625°F (1404 – 1440°C)

 Density: 0.282 lbs/in3 / 7.78 g/cm3

 Modulus of Elasticity in Tension: 28.5 X 106 psi / 196 GPa



Mechanical Properties
Condition: Solution Treated (A)

Tensile Strength Minimum (psi): 160,000

Yield Strength Minimum 0.2% offset (psi): 140,000

% Elongation in 2” Typical: 8%

Hardness: Rockwell C35


Condition: Aged (H1075)
Tensile Strength Typical (psi): 162,000
Yield Strength Typical 2% offset (psi): 160,000
% Elongation in 2": 12%
Hardness: Rockwell C38

Condition: Aged (H900)
Tensile Strength Typical (psi): 210,000
Yield Strength Typical 2% offset (psi): 200,000
% Elongation in 2": 9%
Hardness: Rockwell C46


Heat Treatments

15-5 is typically supplied in Condition A, and can be heat treated at a variety of temperatures and
times to achieve a wide range of properties. Below is a sampling of standard heat treatments for Condition A 15-5 material:

Condition

Heat to ( +/- 15F / 8.4 ℃ )

Time at temperature ( H )

H900

900 F / 482 ℃

1

H1025

1025 F / 551 ℃

4

H1075

1075 F / 580 ℃

4
