Product Details:
Payment & Shipping Terms:
|
| Material: | UNS S41500, EN 1.4313, DIN X3CrNiMo13-4, F6NM | Product: | DIN X3CrNiMo13-4 EN 1.4313 F6NM S41500 Hot Rolled Stainless Steel Plates |
|---|---|---|---|
| Size: | 5~150 X 2100mm | Delivery Condition: | Annealed |
| Highlight: | 420 stainless steel plate,1.4028 stainless steel |
||

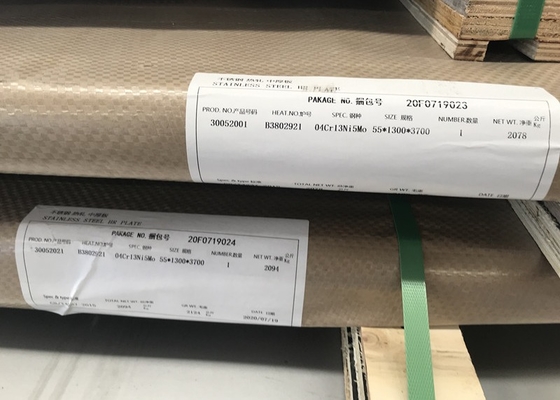

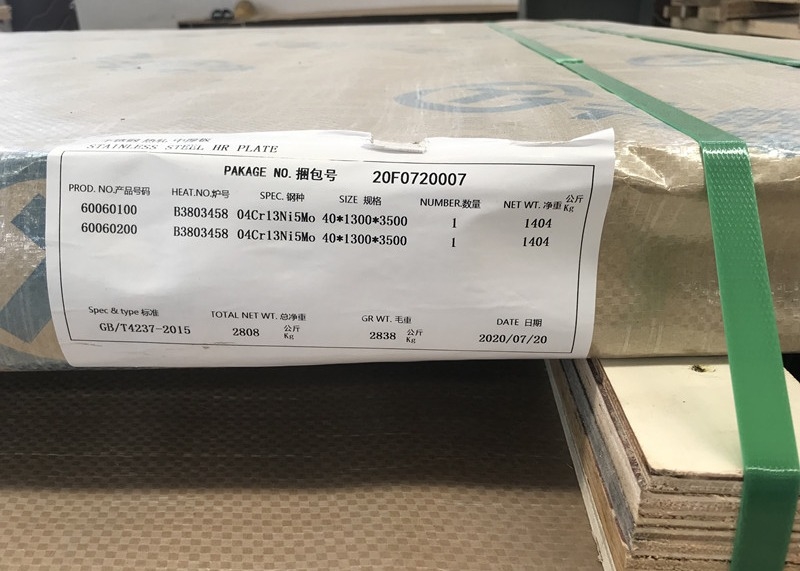

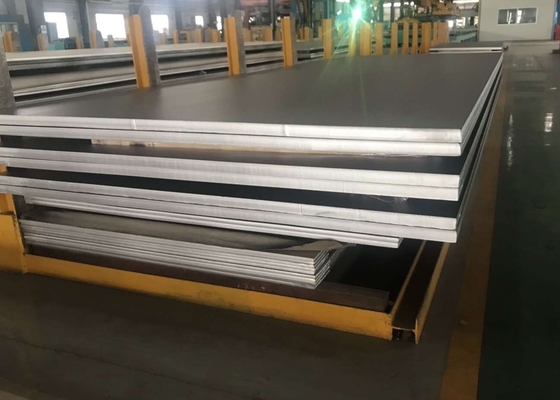

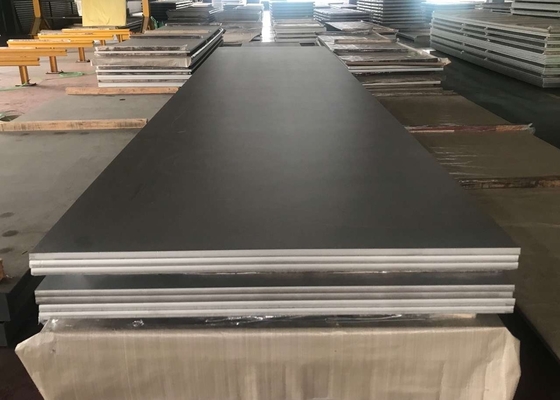

EN 1.4313 ( DIN X3CrNiMo13-4 ) , F6NM , S41500 hot rolled stainless steel plate
W.-nr. 1.4313 ( DIN X3CrNiMo13-4 ) a 13% Cr-4% Ni-0.5% Mo a low–carbon martensitic stainless
steel with basic corrosion resistance, good strength, good toughness and much better weldability than
most martensitic grades of stainless steel.
Its nickel content, associated with low carbon ensures better weldability, ductility, impact and fatigue
resistance than 13 Cr martensitic grades (410, 420).
The alloy has good corrosion resistance to fresh water and performs well in abrasive conditions.
It combines high mechanical properties, excellent toughness and weldability.
It is commonly used in turbines and flow control systems in the hydropower industries.
STANDARDS
EURONORM EN 1.4313, DIN X3CrNiMo13-4
ASTM/ASME UNS 41500, F6NM
GB 04Cr13Ni5Mo
Chemical composition ( % typical )
| C | Cr | Ni | Mo | Si | others |
| 0.04 | 13.0 | 4.0 | 0.5 | 0.4 | P 0.020, S 0.001 |
W.-nr. 1.4313 ( DIN X3CrNiMo13-4 ) grade is specially designed for applications requiring high strength,
high toughness and medium corrosion resistance properties.
The chromium, nickel and molybdenum additions make the alloy resistant to corrosion in fresh water.
Typical applications are hydroelectric turbines and systems (blades, runners, gates, rings, shield plates,…),
hydropter wings to fight cavitation by high speed water.
