"12 Chrome Moly Van” steels are a series of martensitic stainless steels designed for
use at moderately high temperatures. 1.4923 is a typical grade in this series.
The dominant application is steam power generating plant.
Martensitic steel grade EN 1.4923 DIN X22CrMoV12-1, Creep resisting steel,
hardened and tempered.
Usual upper temperature limit for continuous operating 580°C.
1.4923 grade combines the following characteristics:
-
Moderate strength – 800 MPa UTS, 600 MPa 0.2% PS at room temperature
-
Moderate high temperature strength – 280 MPa 0.2% PS at 550°C
-
Good creep strength – 137 MPa rupture stress at 550°C at 100000 hours
-
Moderate toughness – typically 50 J at room temperature
-
Basic corrosion resistance
-
Weldable with care. Requires pre and post weld heat treatment
Components featuring elevated high-temperature strength for use in thermal engines and power
plants, such as turbine blades, turbine discs, screws, bolts, pins and shafts.
Chemical composition ( % average )
|
C
|
Si
|
Mn
|
Cr
|
Mo
|
Ni
|
V
|
|
0.22
|
0.25
|
0.70
|
11.40
|
0.95
|
0.70
|
0.30
|
Standards
|
EN / DIN
|
BS
|
AFNOR
|
SIS
|
|
1.4926, X21CrMoV12-1
1.4923, X22CrMoV12-1
1.4922, X20CrMoV11-1
|
762
|
Z21CDV12
|
2317
|
Product forms
1.4923, X22CrMoV12-1 hot and cold rolled steel coil, strip, sheet and plate, cut sheet, slit strip
For Details, please Contact
WUXI GUANGLU Special Steel Co., Ltd.
Stainless martensitic • precipitation hardening steel • stainless ferritic — Our answer to your needs
Tel: +86 510 81812873
Email: export@guanglusteel.com

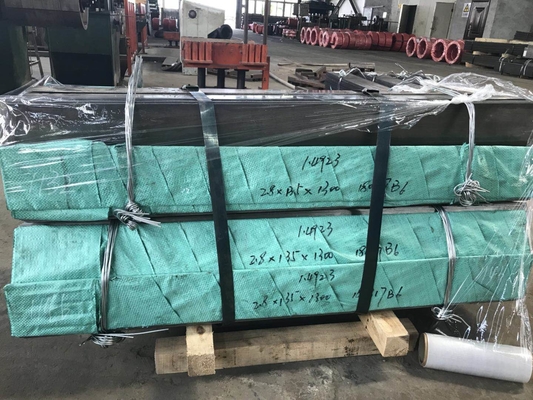

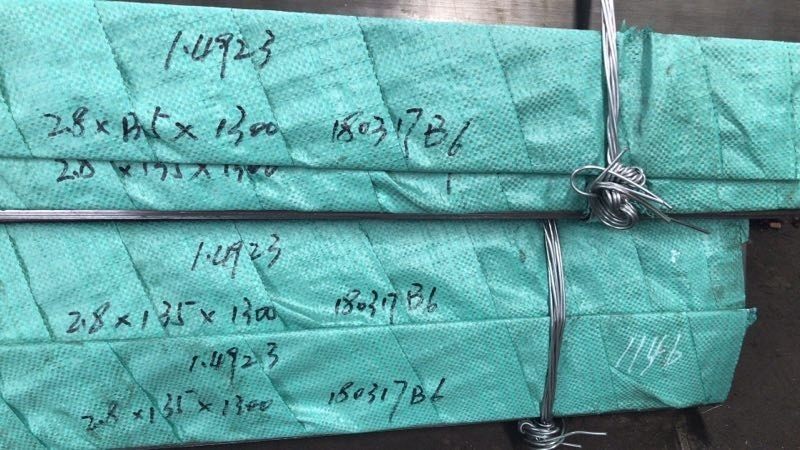

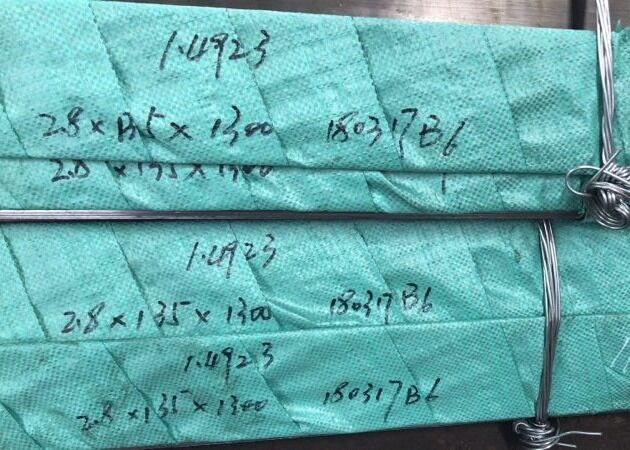

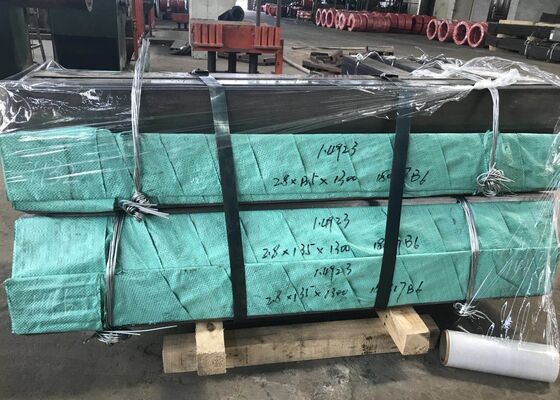

picture for EN 10302: 2008 X22CrMoV12-1 ESR stainless steel sheets, cold rolled, annealed,
bright finish, 2.8*135*1300mm
