JIS SUS631 EN 1.4568 17-7PH Cold Rolled Stainless Steel Strip In Coil

JIS SUS631 EN 1.4568 17-7PH Cold Rolled Stainless Steel Strip In Coil
JIS SUS631 EN 1.4568 17-7PH Cold Rolled Stainless Steel Strip In Coil JIS SUS631 EN 1.4568 17-7PH Cold Rolled Stainless Steel Strip In Coil

Large Image :  JIS SUS631 EN 1.4568 17-7PH Cold Rolled Stainless Steel Strip In Coil

Product Details:
Place of Origin: China
Brand Name: Daway
Certification: SGS
Model Number: SUS631 EN 1.4568 17-7PH
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Price: negotiable
Packaging Details: seaworthy
Delivery Time: 15 days after receipt 30% of value
Payment Terms: T/T
Supply Ability: 200 tons per month
Detailed Product Description
Material: 17-7PH, 631, EN 1.4568 Product: 17-7PH Stainless Steel Strip
Size: 0.1~10.0X420mm Delivery State: ANN, CH ( 1/2H, 3/4H, H )
High Light:

stainless steel precision strip

,

stainless steel foil

JIS SUS631 EN 1.4568 17-7PH Cold Rolled Stainless Steel Strip In Coil

SUS631-CSP, EN 1.4568, DIN X7CrNiAl17-7, S17700, The most representative precipitation hardened
steel grade which can be further hardened via heat treatment.
After precipitation hardening treatment, it shows extremely strong magnetism.


Typical application
Diaphragms, reed valves, mask frame springs, various other springs, bellows, etc.

Chemical composition ( weight % )

Grade C Si Mn P S Cr Ni Al
SUS631-CSP, EN 1.4568 0.09 max 1.00 max 1.00 max 0.040 max 0.030 max 16.00~18.00 6.50~7.75 0.75~1.50


Product forms

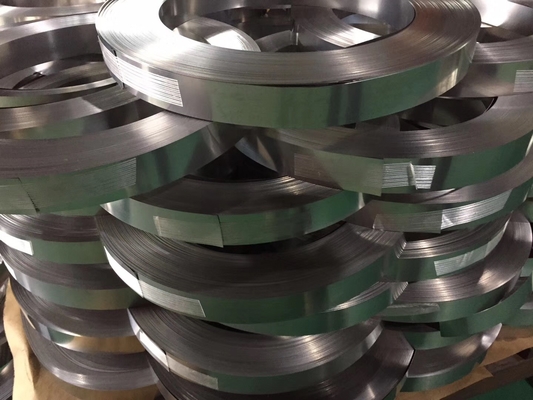

Cold rolled Spring Stainless Steel strip

Grades and mechanical properties of the stainless steel strips for spring use

Grade Temper symbol HV
631 O 200 max.
1/2H 350 min.
3/4H 400 min.
H 450 min.


We provide high strength stainless steel strip for springs, grades including SUS301-CSP,
SUS304-CSP, SUS316-CSP, SUS631-CSP, SUS632J1-CSP, SUS420J2-CSP
according to JIS G4313 cold rolled stainless steel strip for spring.
