Precipitation Hardening PH15-7Mo Cold Rolled Stainless Steel Strip Coil

Precipitation Hardening PH15-7Mo Cold Rolled Stainless Steel Strip Coil
Precipitation Hardening PH15-7Mo Cold Rolled Stainless Steel Strip Coil Precipitation Hardening PH15-7Mo Cold Rolled Stainless Steel Strip Coil Precipitation Hardening PH15-7Mo Cold Rolled Stainless Steel Strip Coil

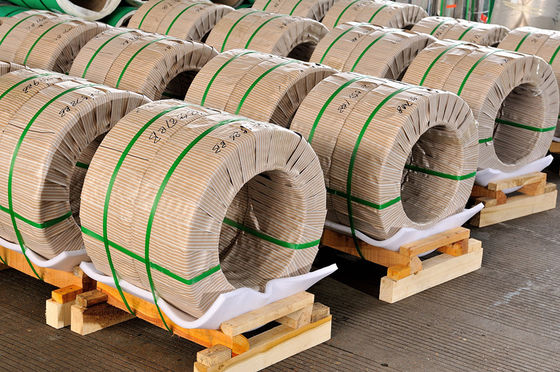

Large Image :  Precipitation Hardening PH15-7Mo Cold Rolled Stainless Steel Strip Coil

Product Details:
Place of Origin: China
Brand Name: Daway
Certification: SGS
Model Number: PH15-7Mo , EN 1.4574 , UNS S15700 , AISI 632
Payment & Shipping Terms:
Minimum Order Quantity: 500 kgs
Price: negotiable
Packaging Details: seaworthy
Delivery Time: 15 days after receipt 30% of value
Payment Terms: T/T, L/C
Supply Ability: 200 tons per month
Detailed Product Description
PH Grade: PH15-7Mo Product: PH15-7Mo Cold Rolled Stainless Steel Strip Coil
Size Range: 0.1~3.0X420mm Delivery State: Condition A, C
High Light:

630 stainless steel

,

17 7 ph stainless steel

PH15-7Mo Cold Rolled Stainless Steel Strip Coil

15-7Mo, 1.4574, SUS632, S15700 is a precipitation-hardening semi-austenitic stainless steel

that provides high strength and hardness, good corrosion resistance and minimum distortion

upon heat treatment.

It is easily formed in the annealed condition and develops an effective balance of properties by

simple heat treatments.

For applications requiring exceptionally high strength, cold-reduced 15-7Mo Stainless Steel in

Condition CH 900 is particularly useful for applications permitting only limited ductility and workability.

This alloy is particularly beneficial for applications requiring high strength at elevated temperatures.

APPLICATIONS

  •  Seal Rings
  •  Retaining rings
  •  Springs
  •  Aircraft components



CHEMISTRY TYPICAL

  •  Carbon: 0.090 max
  •  Manganese: 1.00 max
  •  Silicon: 1.00 max
  •  Chromium: 14.00-16.00
  •  Nickel: 6.50- 7.75
  •  Molybdenum: 2.00-3.00
  •  Aluminum: 0.75-1.50
  •  Phosphorus: 0.040 max
  •  Sulfur: 0.040 max
  •  Iron: Balance


Density
(Cond. A), 0.280 lbs/in³, 7.80 g/cm³

Typical Room Temperature Mechanical Properties

Property A TH1050 RH950 C CH900
UTS 896 1448 1655 1517 1828
0.2% YS 372 1379 1552 1310 1793
Elongation % in 50.8mm 35 7 6 5 2
Hardness, rockwell B88 C44 C48 C45 C50


15-7Mo stainless, the general level of corrosion resistance in Conditions TH 1050 and RH 950 is
superior to standard hardenable types of stainless such as Types 410, 420 and 431, but is not quite

as good as Type 304.

Product forms
AMS 5520 sheet, strip and plate
ASTM A693 plate, sheet and strip
