Payment & Shipping Terms:
|Precipitation Hardening Steel:||17-7PH, SUS631||Product:||17-7PH Stainless Steel Sheet, Plate, Strip And Coil|
|Size Range:||0.1~60.0X420mm||Delivery Condition:||Condition A, C|
630 stainless steel,
17 7 ph stainless steel

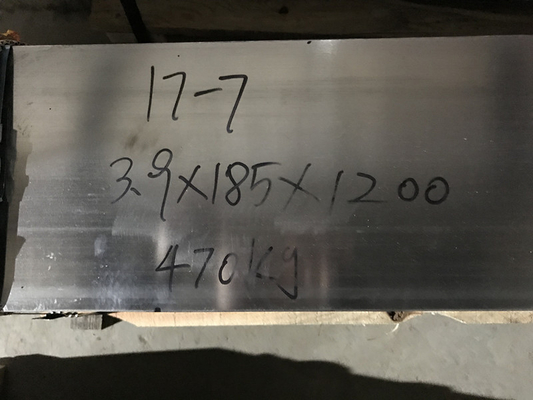

Stainless Steel Type 17-7PH SUS631 Steel Sheets / Plates And Strip Coil
17-7PH is a chromium-nickel-aluminum precipitation hardening stainless steel that provides high
strength and hardness and a moderate level of corrosion resistance up to 600˚F.
This grade can be easily formed in the austenitic condition similar to Type 301 stainless steel and hardened
to high strength levels using relatively low heat treatments that minimize distortion.
The corrosion resistance of 17-7PH is comparable to that of Type 304 stainless steel, especially in the
CH 900 temper, and it has been used for spring applications, washers, eyelets, fittings and fasteners.
Heat treatments can strengthen this 17-7PH type of stainless steel.
The typical process for 17-7PH stainless heat treatment has three or four steps:
Conditioning using austenite.
Cooling, which turns the austenite into martensite.
Precipitation hardening until Condition TH 1050 or RH 950 has been reached.
To achieve the highest mechanical properties Condition A material is transformed to martensite at
the mill by cold reduction to Condition C.
After fabrication by the user, a single low-temperature heat treatment is preformed to achieve condition CH 900.
For Details, please Contact
WUXI GUANGLU Special Steel Co., Ltd.
Stainless martensitic • precipitation hardening steel • stainless ferritic — Our answer to your needs
Tel: +86 510 81812873
Contact Person: Paul Lu
