Product Details:
Payment & Shipping Terms:
|
| Material: | X4CrNiMo16-5-1 1.4418 Hot Rolled Stainless Steel Plate ( Sheet ) | Dimension: | 6~60X1500/1800X6000mm |
|---|---|---|---|
| Delivery State: | Annealed | Surface: | Pickled, 1D |
| Highlight: | 1.4418 Hot Rolled Stainless Steel Plate,1.4418 ot Rolled Stainless Steel Sheet,Martensitic Grade X4CrNiMo16-5-1 |
||

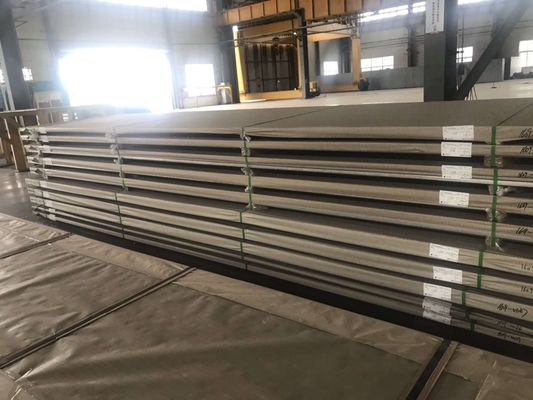

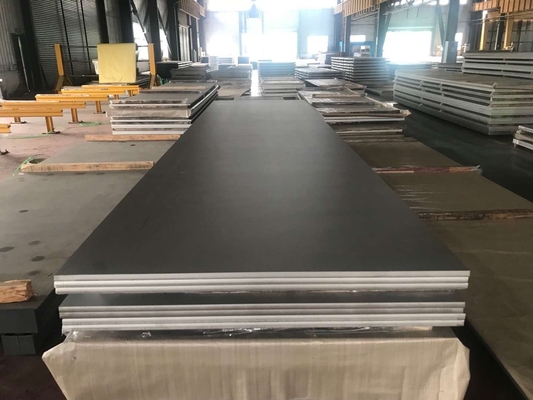

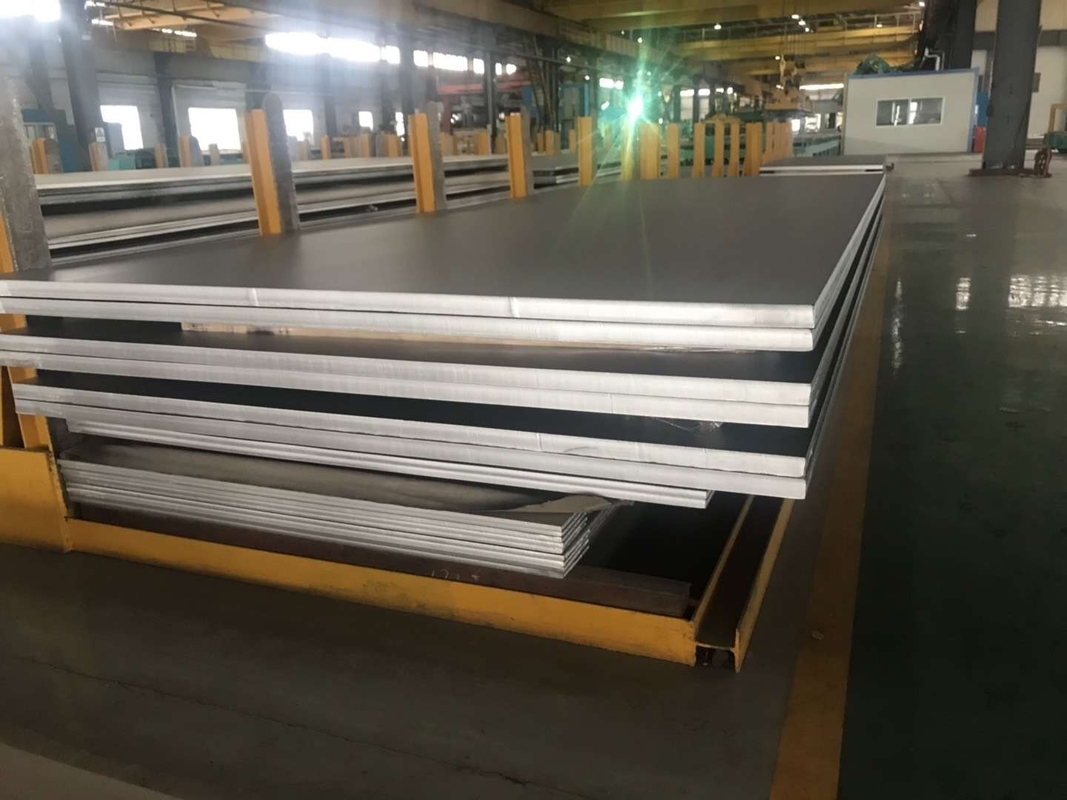

X4CrNiMo16-5-1 1.4418 Hot Rolled Stainless Steel Plate
Equivalent grades of stainless steel X4CrNiMo16-5-1 (1.4418)
| Material no. EN | DIN | France AFNOR |
Sweden |
| 1.4418 | X4CrNiMo16-5-1 | Z6CND16-05-01 | 2387 |
Chemical composition % of Martensitic grade X4CrNiMo16-5-1 (1.4418) : EN 10088-2-2005
| C | Si | Mn | P | S | Cr | Ni | Mo | N |
| max 0.06 | max 0.7 | max 1.5 | max 0.040 | max 0.015 | 15.00~17.00 | 4.00~6.00 | 0.8~1.5 | max 0.02 |
Mechanical properities
| Hardness | 0.2% Yield strength Rp ≥ Mpa. | Tensile strength Rm Mpa | Elongation A5 | Modulus of elasticity Kn/mm2 |
| HB ≤320 | 550 | 760~980 | 16 | 200 |
Available forms
1.4418 Stainless steel sheets ( plates ), round bars
Standard
EN 10088-2: 2005 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion
resisting steels for general purposes
EN 10088-3: 2005 Stainless steels. Technical delivery conditions for semi-finished products, bars, rods,
wire, sections and bright products of corrosion resisting steels for general purposes
EN 10028-7: 2007 Flat products made of steels for pressure purposes. Stainless steels
EN 10272: 2007 Stainless steel bars for pressure purposes
EN 10250-4: 2000 Open steel die forgings for general engineering purposes. Stainless steels
EN 10088-1: 2005 Stainless steels. List of stainless steels
EN 10088-5: 2009 Stainless steels. Technical delivery conditions for bars, rods, wire, sections and bright
products of corrosion resisting steels for construction purposes
EN 10088-4: 2009 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion
resisting steels for construction purposes
