| Heat Resisting Steel: | Ferritic Steel, Material 1.4742, X10CrAlSi18 | Product: | 1.4742 Stainless Steel Wire, Rod, Round Bar |
|---|---|---|---|
| Dia: | 1.0~130mm, Others On Request | Delivery Condition: | Annealed |
| High Light: | EN 10095 Stainless Steel Wire Bars,AISI 442 Stainless Steel Wire Bars,Ferritic Stainless Steel Wire Bars Rod |
||

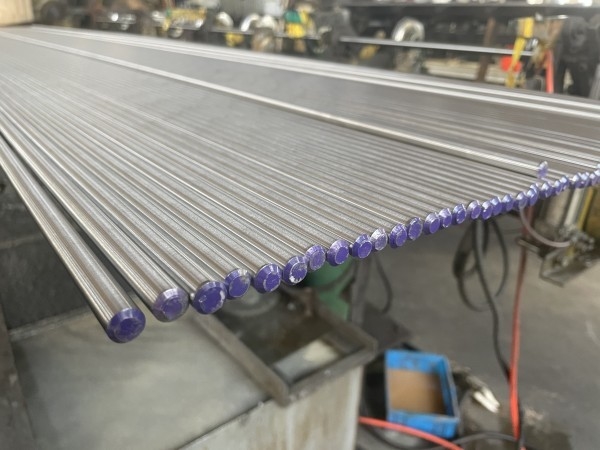

Stainless Steel Wire, Rod, Round Bars EN 10095 1.4742 AISI 442
Stainless heat resistant ferritic chromium steel with aluminium addition, material EN 10095, 1.4742, DIN X10CrAlSi18
AISI 442, UNS S44200, SEW 470, 1.4742, X10CrAl18, resistant to scaling in air up to 1000°C
1.4742 is a heat resistant, ferritic stainless steel which is characterised by its resistance sulphur bearing gasses.
Due to its higher chromium content, material 1.4742 is more resistant to high temperature oxidation than
1.4724, but is less resistant than 1.4762, which contains even more chromium.
Chemical composition of ferritic heat resisting steels, EN 10095
| DIN | EN | C | Si | Mn |
P |
S | Cr | Al | Others |
| X10CrAlSi7 | 1.4713 | max. 0.12 | 0.5 ~ 1.00 | 1.00 | max. 0.040 | max. 0.015 | 6.00~8.00 | 0.50~1.00 | |
| X10CrAlSi13 | 1.4724 | max. 0.12 | 0.7 ~ 1.4 | 1.00 | 0.040 | 0.015 | 12.00 ~ 14.00 | 0.70 ~ 1.20 | |
| X10CrAlSi18 | 1.4742 | max. 0.12 | 0.7 ~ 1.4 | 1.00 | 0.040 | 0.015 | 17.00 ~ 19.00 | 0.70 ~ 1.20 | |
| X10CrAlSi25 | 1.4762 | max. 0.12 | 0.7 ~ 1.4 | 1.00 | 0.040 | 0.015 | 23.00 ~ 26.00 | 1.20 ~ 1.70 | |
| X18CrN28 | 1.4749 | 0.15 ~ 0.20 | max. 1.00 | 1.00 | 0.040 | 0.015 | 26.00 ~ 29.00 | N: 0.15~0.25 | |
| X3CrAlTi18-2 | 1.4736 | max. 0.04 | max. 1.00 | 1.00 | 0.040 | 0.015 | 17.00 ~ 18.00 | 1.70 ~ 2.10 | Ti: 0.2+4(C+N), 0.80 |
Typical applications of material 1.4742
bolts, fasteners, high temperature nozzles and jets, furnace engineers, mechanical parts etc.
Heat treatment
Optimal material properties are realised after annealing by holding in the temperature range
800 - 860°C, followed by rapid cooling in air or water. In this condition the following mechanical
properties can be expected when testing in the longitudinal direction at room temperature:
| Property | Specification | Typical |
| Tensile strength | Rm 500 - 700 | 580 |
| Yield strength | Rp0.2 ≥270 | 370 |
| Elongation | A5 ≥15 | 18 |
| Hardness | HB ≤212 |
