Product Details:
Payment & Shipping Terms:
|
| Material: | 1.4310 | Product: | 1.4310 Stainless Steel Precision Strip |
|---|---|---|---|
| Specification: | DIN EN 10151 Stainless Steel Strip For Springs | Dimension: | 0.02~1.5X3~640mm |
| Temper: | C700, C850, C1000, C1150, C1300, C1500, C1700, C1900 | Surface Finish: | 2H |
| Edge: | Cut, Round Corner, Deburred | Form Of Supply: | Coil, Cut To Lengths Sheets |
| High Light: | EN 10151 Precision Stainless Steel Strip,1.4310 Precision Stainless Steel Strip,1.4310 steel band tape |
||

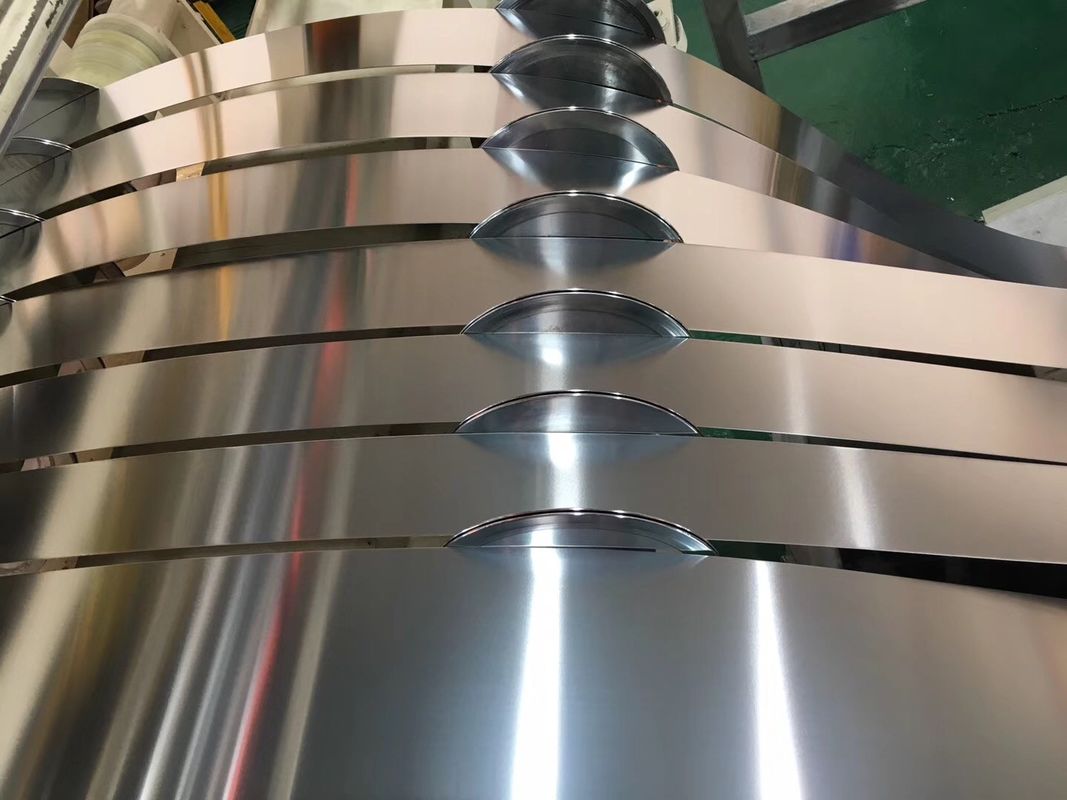

Stainless Steel EN 10151 Precision Strip 1.4310 Belt ( Band Tape )
DIN EN 10151 Stainless steel strip for springs
Material EN 1.4310 DIN X10CrNi18-8, cold rolled, precision strip, tension leveled, 2H bright, DIN EN ISO 9445-1
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | N |
| 1.4310 | 0.05~0.15 | 2.00 max. | 2.00 max. | 0.045 max. | 0.015 max. | 16.00~19.00 | 6.00~9.50 | 0.80 max. | 0.11 max. |
| Temper | Tensile strength Mpa |
| +C700 | 700 - 850 |
| +C850 | 850 - 1000 |
| +C1000 | 1000 - 1150 |
| +C1150 | 1150 - 1300 |
| +C1300 | 1300 - 1500 |
| +C1500 | 1500 - 1700 |
| +C1700 | 1700 - 1900 |
| +C1900 | 1900 - 2200 |
Dimensions
Precision strip 1.4310 is available in the following size ranges
Thickness 0.02 - 1.5mm
Width 3.0 - 640mm
Edges
Cut, deburred, rounded
Form of delivery
coil, sheet
