Product Details:
Payment & Shipping Terms:
|
| Austenitic Stainless Steel: | EN 1.4310 AISI 301 | Product: | EN 1.4310 AISI 301 Stainless Steel Belts, Spring Steel Strip, Thin Strip |
|---|---|---|---|
| Size Range: | 0.02~3.0X3~1500mm | Delivery Condition: | 1/2H, 3/4H, FH, EH |
| High Light: | stainless steel precision strip,stainless steel foil |
||

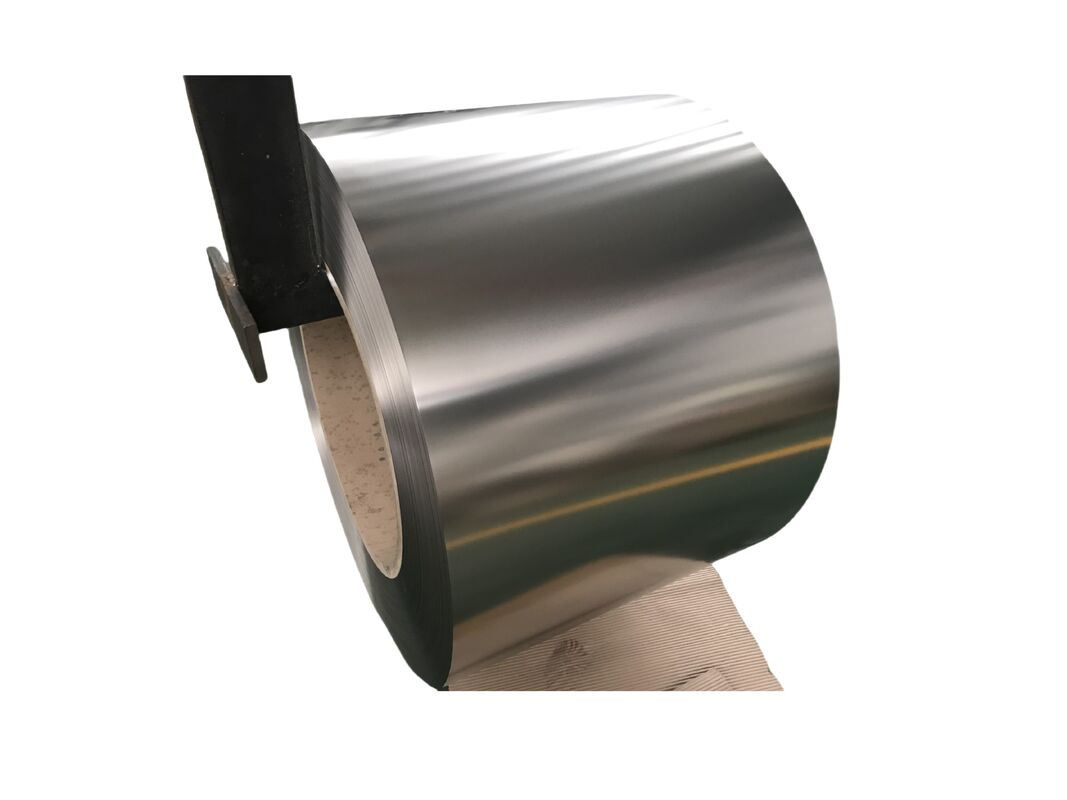

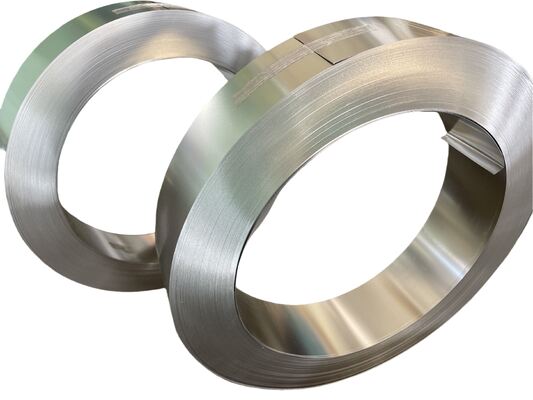

EN 1.4310 AISI 301 Stainless Steel Belts, Spring Steel Strip, Thin Strip
Belt grade 1.4310 is an austenitic stainless steel and is characterised by:
stainless 301 is a high corrosion resistant steel with good wear resistance.
This makes it the universal choice for food and chemical industries (cooling, freezing and drying
processes). Another advantage is that it is easy to repair.
Standards
| EN, DIN | AISI | JIS | Chemical composition % typical |
|
1.4310 X10CrNi18-8 |
301 S30100 |
SUS301 | C 0.1, Si 0.8, Mn 1.0, Cr 17.0, Ni 7.0 |
Mechanical properities
3/4H Temper symbol
| Yield strength Mpa | Tensile strength Mpa | Elongation A % | Hardness |
| 980 | 1200 | 28 | 380 HV |
Forms of supply
The belts are, as standard, delivered in a specially selected cold rolled temper finish and have
well-rounded edges.
If required practically any surface finish can be supplied.
The steel belts are levelled and straightened to obtain optimal flatness and straightness.
The steel belts can be supplied in open lengths, with the ends prepared for welding on site,
or in endless condition with a welded joint.
For tracking, the belts can be provided with V-ropes, either rubber or in the form of a specially
designed steel spiral.
If required, the product side of the belt can be fitted with retai-ning strips to keep the conveyed material
on the belt or with transverse flights to prevent material from sliding backwards when the belt is steeply inclined.
For Details, please Contact
Wuxi Guanglu Special Steel Co., Ltd. – your productivity partner for precision strip steel.
We are looking forward to your enquiries.
