| Precipitation Hardening Steel: | 630 17-4PH S17400 1.4542 X5CrNiCuNb16-4 | Product: | 630 Stainless Steel Round Bars Rods |
|---|---|---|---|
| Dia: | 1.0~450mm | Delivery Condition: | Solution Annealed, Aged |
| Surface: | Black, Peeled, Centerless Ground | Length: | On Request, Saw Cutting Service Provided |
| High Light: | 1.4418 stainless steel,stainless steel round bar |
||

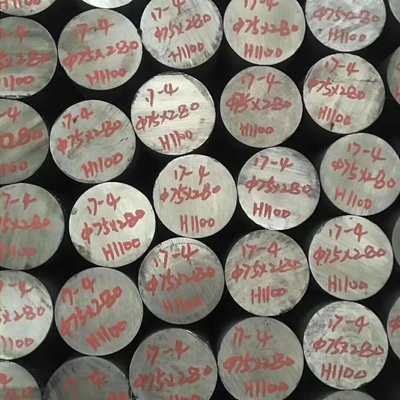

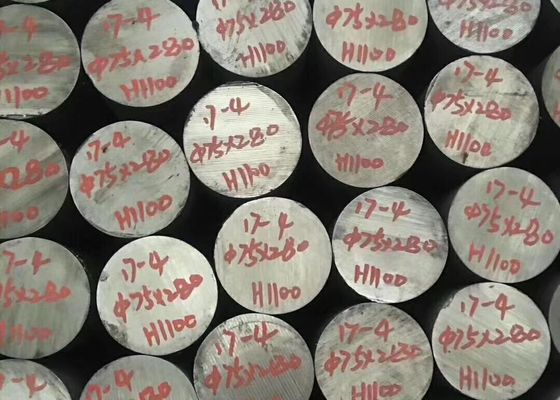

JIS SUS630 Stainless Steel Round Bars Rods Centerless Ground Bars Bright Products
17-4PH 630 1.4542 S17400
a precipitation hardening stainless steel which is capable of high strength and hardness levels
after a relatively simple heat treatment prodedure.
This grade is martensitic and magnetic in both the solution treated and precipitation hardened conditions.
It has high resistance to crack propagation, good transverse properities, and corrosion resistance is
normally superior to the regular martensitic chromium type of stainless steels.
Because of the single low temperature 900 to 1150oF precipitation hardening
heat treatment of this grade, scaling and distortio are virually eliminated.
This enables material to be finish machined to close tolerances prior to heat treatment.
Chemical composition %
| C | Si | Mn | P | S | Cr | Ni | Cu | Nb |
| 0.07 | 1.00 | 1.00 | 0.040 | 0.030 | 15.50~17.50 | 3.00~5.00 | 3.00~5.00 | 0.15~0.45 |
Typical applications
Vales, Turbine blades, motor shafts, bolts, propeller shafts, fasteners, pump shafts, instrument parts, ball bearings,
forgings, gears, aircraft parts..
Product forms
Our 630 17-4PH stainless steel bar products program includes round, flat, square, hexagon.
all in the drawn, hot rolled, forged, peeled, and centerless ground condition.
more grades 17-7PH, 631, 15-5PH, S15500, PH15-7Mo, S15700 PH13-8Mo, S13800
