Product Details:
Payment & Shipping Terms:
|
| AISI, ASTM: | AISI 420 UNS S42000 | EN 10088: | 1.4021 1.4028 1.4031 1.4034 |
|---|---|---|---|
| Product: | 420 Stainless Steel Round Bars | Size Range: | Dia 1.0~450mm |
| Delivery State: | Annealed | Surface: | Black, Peeled, Bright, Ground |
| High Light: | 440 stainless steel,420 stainless steel |
||
Stainless Steel AISI 420 Solid Round Bar Material 1.4021 1.4028 1.4031 1.4034
Grade 420 Stainless Steel - a modification of 410 with a higher carbon content to increase hardness,
improve strength and give better wear resistance.
420 stainless steel is a martensitic higher carbon version of types 410 and 416 stainless that can be hardened
by heat treatment.
It contains a minimum of 12 percent chromium, sufficient to give 420 corrosion resistance properties.
It has good ductility in the annealed condition but is capable of being hardened up to 55 RHC.
Its best corrosion resistance is achieved when 420 is hardened and surface ground or polished.
In the hardened condition, 420 has good corrosion resistance to the atmosphere, foods, fresh water,
mild alkalies and acids, steam, sterilizing solutions, crude oil, gasoline, and other similar corrosive media.
The higher carbon content employed in 420 gives higher strength and hardness over stainless grades 410 and 416.
Principal applications include Bushings, Dental and Surgical Instruments, Pump Parts, Valve Parts, and Shafts.
In 420 series stainless group family, it contains four types by its carbon content.
| Grade 420 | UNS | EN/DIN | Chemical composition % wt |
| 420A | S42000 | 1.4021 / X20Cr13 | C 0.16~0.25, Cr 12.00~14.00 |
| 420B | S42000 | 1.4028 / X30Cr13 | C 0.26~0.35, Cr 12.00~14.00 |
| 420X | S42000 | 1.4031 / X39Cr13 | C 0.36~0.42, Cr 12.50~14.50 |
| 420C | S42000 | 1.4034 / X46Cr13 | C 0.43~0.50, Cr 12.50~14.50 |
Available forms

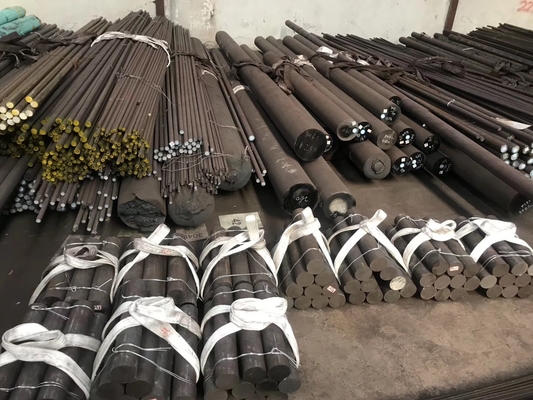

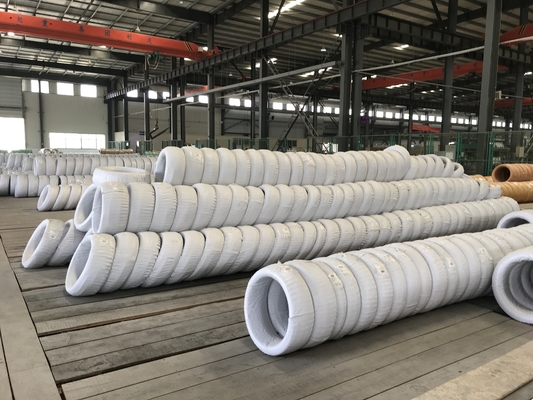

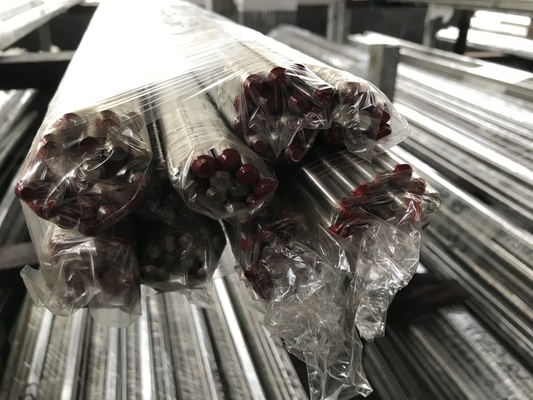

AISI 420 stainless steel round bars, drawn wires, rods
EN 10088 standard, Material no. 1.4021, 1.4028, 1.4031, 1.4034
