Ferritic Grade: | DIN 1.4724 | Product: | 1.4724 Stainless Steel Tubes / Pipe |
---|---|---|---|
Quality: | Cold Drawn ( Rolled ) | Delivery Condition: | Annealed |
Surface: | Pickled, Polished | Specification: | DIN EN 10095 |
High Light: | 444 stainless steel,410s stainless steel |

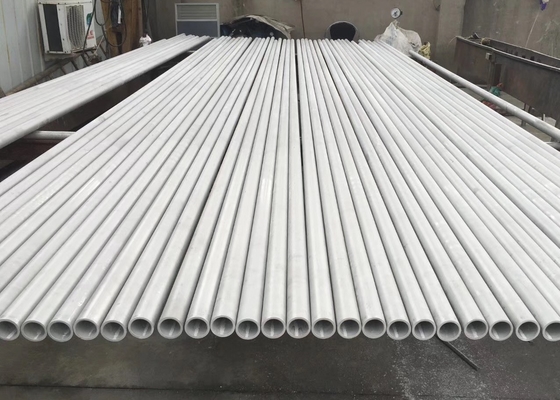

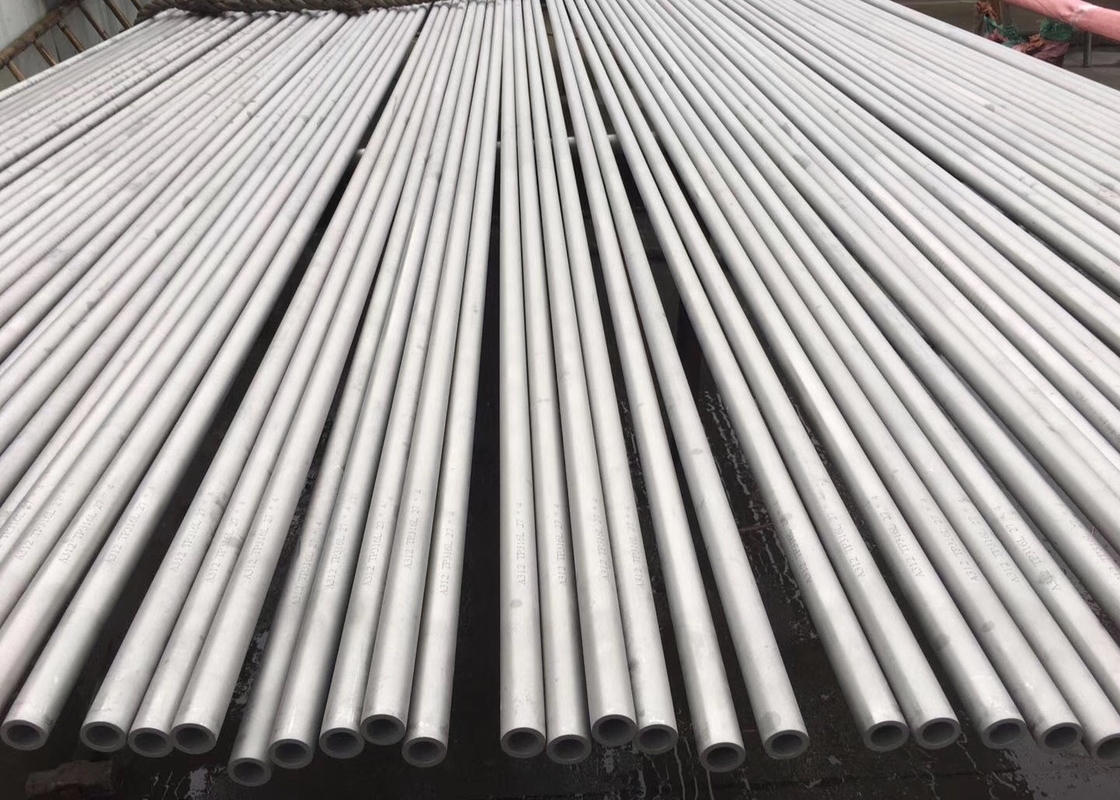

Ferritic Heat Resisting Grade DIN 1.4724 SMLS PIPE / Stainless Steel Seamless Tube
Ferritic stainless steels, heat resisting grades
BS DIN EN 10095
EN | DIN | Chemical composition % | Maximum service temperature in dry air, °C |
1.4713 | X10CrAlSi7 |
C 0.12 max, Si 0.5~1.0, Mn 1.0, P 0.040, S 0.015, Cr 6.0~8.0, Al 0.5~1.0 |
800 |
1.4724 | X10CrAlSi13 | C 0.12 max, Si 0.7~1.4, Mn 1.0, P 0.040, S 0.015, Cr 12.00~14.00, Al 0.7~1.2 | 850 |
1.4742 | X10CrAlSi18 | C 0.12, Si 0.7~1.4, Mn 1.0, P 0.040, S 0.015, Cr 17.00~19.00, Al 0.7~1.2 | 1000 |
1.4749 | X18CrN28 | C 0.15~0.20, Si 1.00, Mn 1.00, P 0.040, S 0.015, Cr 26.0~29.0, N 0.15~0.25 | 1100 |
1.4762 | X10CrAlSi25 | C 0.12, Si 0.7~1.5, Mn 1.00, P 0.040, S 0.015, Cr 23.00~26.00, Al 1.2~1.7 | 1150 |
1.4736 | X3CrAlTi18-2 | C 0.04 max, Si 1.00, Mn 1.00, P 0.040, S 0.015, Cr 17.0~18.0, Al 1.7~2.1, Ti 0.2+C(C+N) ~ 0.80 max. | 1000 |
DIN 1.4724 is a truly stainless high temperature grade with 13% chromium. It is not critical in terms of embrittlement.
Product range
DIN 1.4724 stainless steel pipes and tubes, seamless
