Ferritic JIS SUH409L Hot Rolled Stainless Round Bar DIN 1.4512 AISI 409

Guanglu is really a professional supplier, they always give us technical advice and provide good quality products with very competitive price!

—— Thomas Hoover

We received your goods last thursday and we are very pleased with the quality of your products.

—— Lionel Lobo

It is our pleasure to work with Guanglu, a reliable partner. Thanks.

—— Sutthichai Khumrat

I'm Online Chat Now

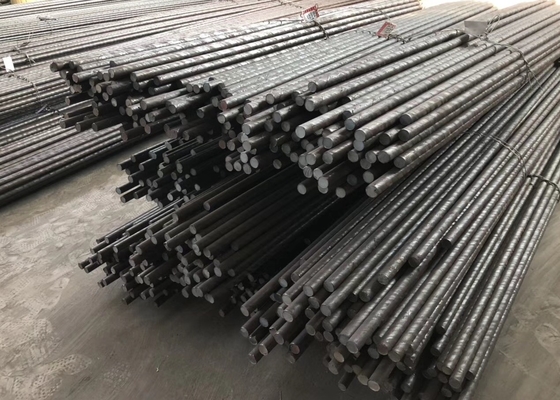

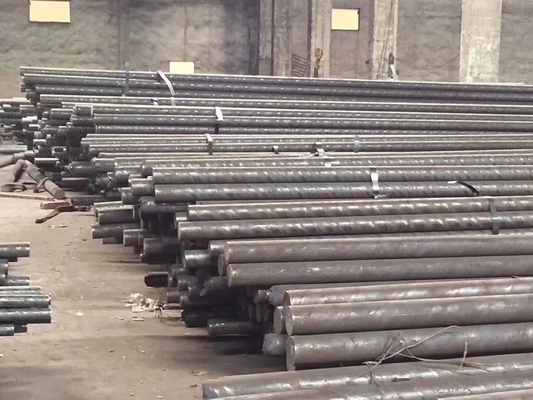

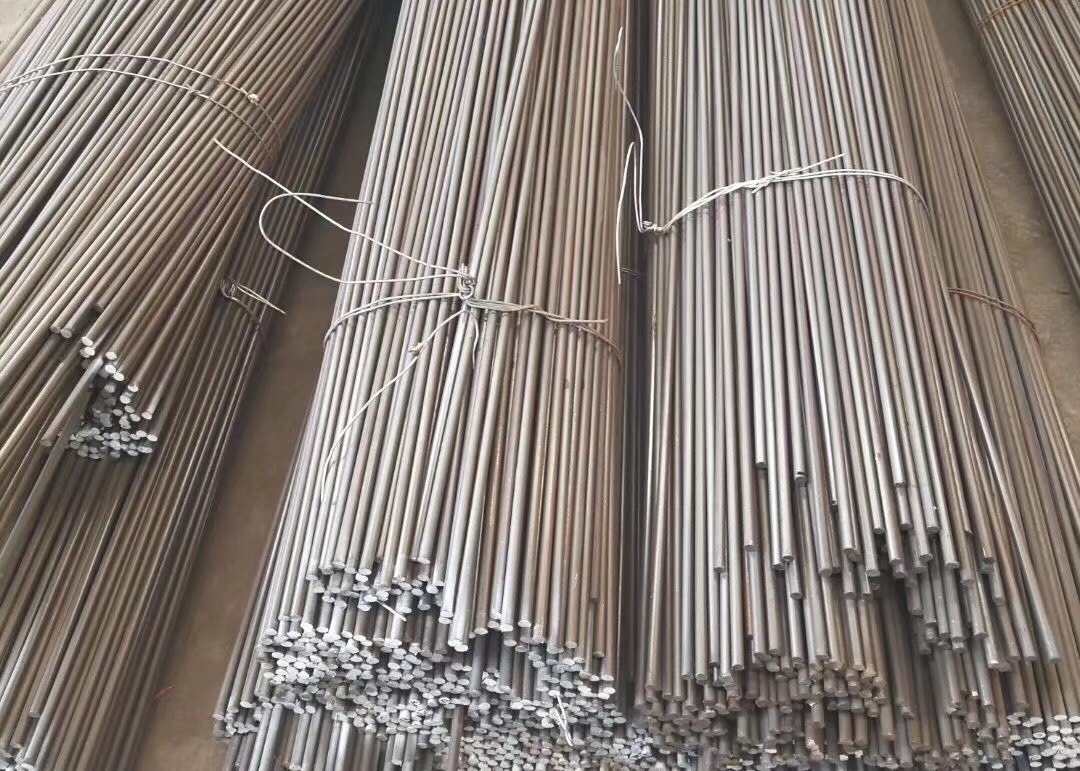

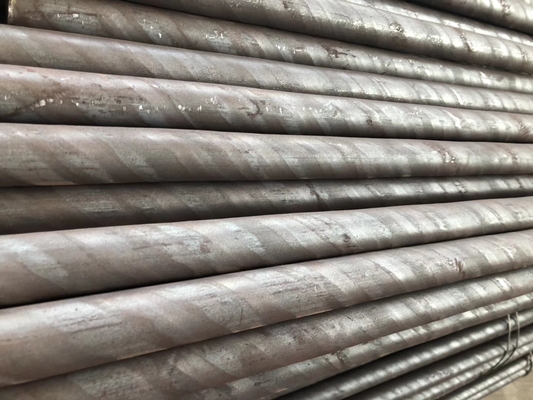

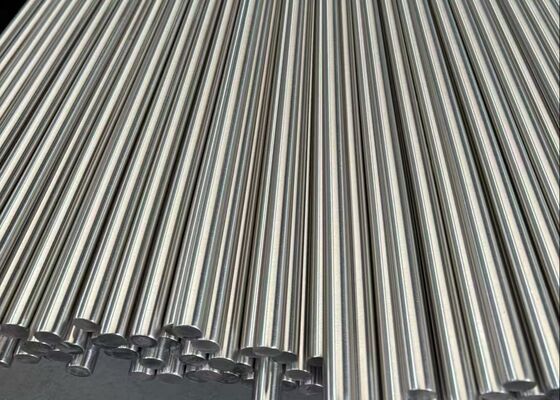

Ferritic JIS SUH409L Hot Rolled Stainless Round Bar DIN 1.4512 AISI 409

Ferritic JIS SUH409L Hot Rolled Stainless Round Bar DIN 1.4512 AISI 409
Ferritic JIS SUH409L Hot Rolled Stainless Round Bar DIN 1.4512 AISI 409 Ferritic JIS SUH409L Hot Rolled Stainless Round Bar DIN 1.4512 AISI 409 Ferritic JIS SUH409L Hot Rolled Stainless Round Bar DIN 1.4512 AISI 409 Ferritic JIS SUH409L Hot Rolled Stainless Round Bar DIN 1.4512 AISI 409

Large Image :  Ferritic JIS SUH409L Hot Rolled Stainless Round Bar DIN 1.4512 AISI 409

Product Details:
Place of Origin: China
Brand Name: Daway
Certification: SGS
Model Number: JIS SUH409L / AISI 409 / UNS 40900 / EN 1.4512 / DIN X2CrTi12
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: 200 tons per month
Packaging Details: seaworthy
Delivery Time: 15 days after receipt 30% of value
Payment Terms: L/C, T/T
Supply Ability: negotiable
Detailed Product Description
Ferritic Grade: JIS SUH409L / AISI 409 / UNS 40900 / EN 1.4512 / DIN X2CrTi12 Product: SUH409L Hot Rolled Stainless Steel Round Bars
Dia: 5.5~130mm Delivery Condition: Annealed
Surface: Black, Peeled, Polished, Ground Length: In Random Or Fixed, On Request
High Light:

444 stainless steel

,

410s stainless steel

Ferritic JIS SUH409L Hot Rolled Stainless Steel Round Bars DIN 1.4512 / AISI 409



Grade designation

AISI/ASTM EN/DIN JIS Chemical composition %

409

UNS S40900

1.4512

X2CrTi12

SUH409L C 0.03 max, Si 1.00 max, Mn 1.00 max, Cr 10.5~11.7, Ni 0.5 max, N 0.03 max, Ti 8(C+N), min 0.15~0.5, Nb 0.10 max



TYPE 409 STAINLESS STEEL is especially useful for applications requiring oxidation or corrosion protection
beyond the capability of carbon steel and some coated steels.

Current uses include automotive and truck exhaust systems, tubular manifolds, agricultural spreaders, gas
turbine exhaust silencers, heat exchangers and fuel filters.

This alloy provides good oxidation and corrosion resistance for automotive and non-automotive exhaust applications



AISI 409 stainless grade combines the following characteristics:

  • Basic corrosion and oxidation resistance
  • Exhibit good wet corrosion resistance to chlorides, sulfates, and many organic acids and have
  • proven to be acceptable for many automotive exhaust applications.



The temperature at which Type 409 start to exhibit destructive scaling in air is 1450 °F (789 °C).

This is considered the general maximum service temperature for continuous exposure in air. However,
maximum service temperatures will vary appreciably, depending on the atmospheres involved.

  • Composition balanced for optimum formability
  • Weldable only in thin sections due to fully ferritic structure
  • Low cost and limited cost variation due to low alloy content



Forms of supply

SUH409L / AISI 409 / EN 1.4512 / DIN X2CrTi12 stainless steel round bars, wire rods

  • other ferritic grades e.g. SUH446, SUS444, SUS405, SUS434, SUS430, SUS430F are also available.
