Product: | EN 1.4418 ( DIN X4CrNiMo16-5-1 ) Martensitic Stainless Steel Round Bars | Dia: | 14.0~450mm |
---|---|---|---|
Delivery State: | Annealed, QT760, QT900 | Surface: | Black, Peeled, Polished, Machined |
High Light: | 1.4418 stainless steel,1.4313 stainless steel |

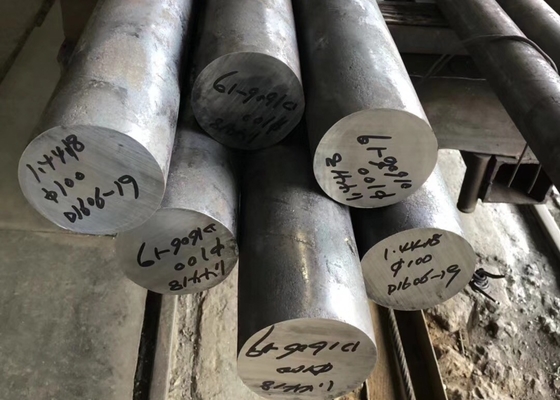

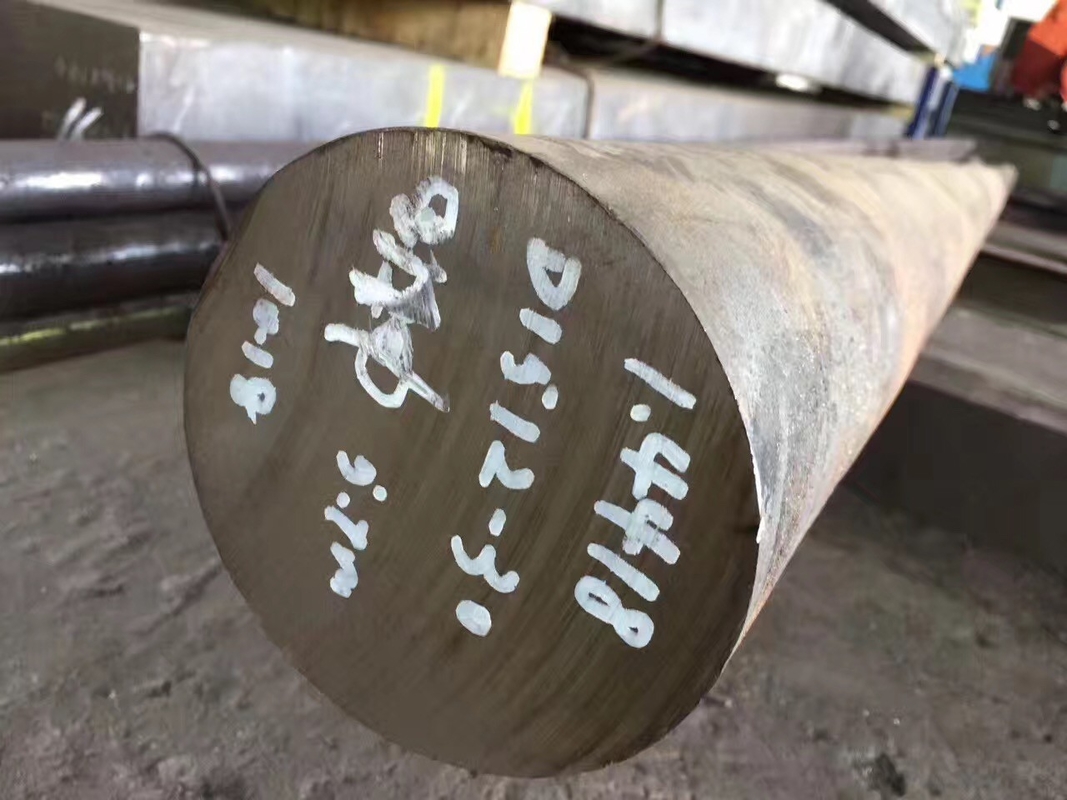

EN 1.4418 DIN X4CrNiMo16-5-1 Stainless Steel Round Bars
Stainless EN 1.4418 steel
Material designation: X4CrNiMo16-5-1
DIN designation: X4CrNiMo16-5-1
Mat.No. (Wr.Nr.) designation: 1.4418
Chemical composition in weight %: max. 0.06% C, max. 0.70% Si, max. 1.50% Mn, max. 0.040% P,
max. 0.015% S, 15.00-17.00% Cr, 0.80-1.50% Mo, 4.00-6.00% Ni
Steel group: Stainless steels, martensitic
Material 1.4418 Stainless is a martensitic stainless steel specially designed for those applications
requiring high mechanical properties combined with improved corrosion resistance relative to traditional martensitic steels.
EN 1.4418 is a high strength low carbon martensiticaustenitic stainless steel.
It combines high strength with good weldability - properties, which are maintained after welding.
EN 1.4418 is designed for applications in slightly corrosive environments where above mentioned properties are required.
In our stock standard condition the steel matrix consists of 80 % martensite, 10 % austenite and 10 % ferrite.
This composition allows a low carbon martensitic structure after quenching and tempering.
Martensite, some remaining austenite, chrome and molybdenum together contribute to the following characteristic properties:
Typical application areas
Material | C | Cr | Ni | Mo |
EN 1.4418 DIN X4CrNiMo16-5-1 ( 165M - SS2387 ) | 0.03 | 16.0 | 5.0 | 1.0 |
