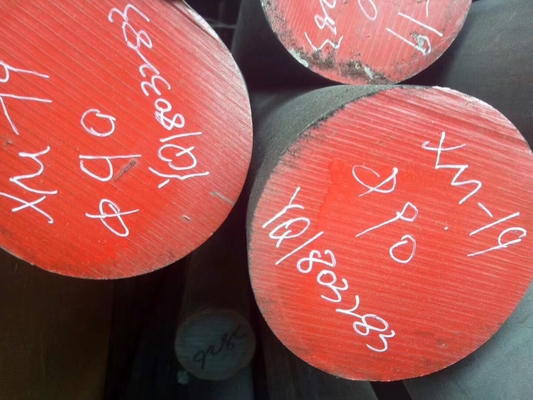

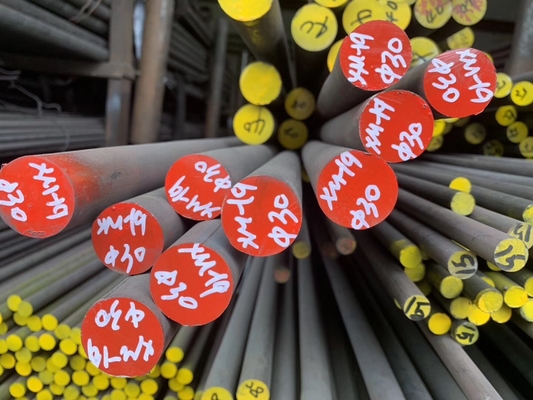

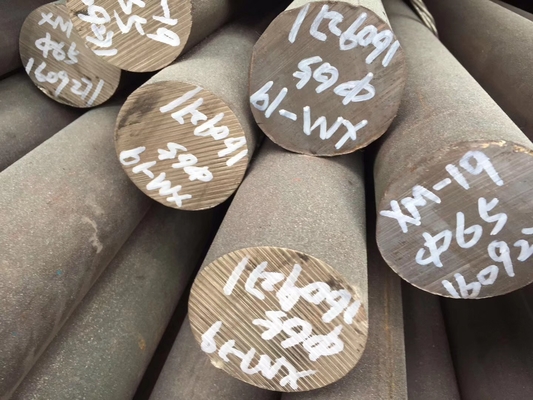

XM -19 DIN 1.3964 S20910 Nitronic 50 Hot Rolled Stainless Steel Round Bars

XM-19 DIN 1.3964 S20910 Nitronic 50 Hot Rolled Stainless Steel Round Bars

XM-19, often known by its AK Steel brand name of Nitronic 50, is a high strength nitrogen-bearing

austenitic stainless steel.

stainless XM-19 has superior corrosion resistance and strength compared to 316/316L.

Standards

Type XM-19 stainless grade combines the following characteristics:

• Better pitting and crevice corrosion resistance than 316/316L and 317L depending on the environment
• Good yield strength (415 MPa minimum) in solution annealed condition
• Special hot working processes allow yield strength of up to 800 MPa dependent on section size
• Extremely high strength by cold drawing
• Impact toughness down to cryogenic temperatures. Advantage over high strength duplex grades
• Use at up to 580°C. Advantage over duplex grades (300°C maximum)
• Non-magnetic even with high levels of cold work
• Difficult to machine due to high hardness

XM-19 stainless offers an excellent combination of high strength and corrosion resistance.

Its main advantage over competitive materials like duplex grades is its much wider band of useful temperatures

both at the high and low end of the spectrum. Increased solubility of nitrogen for high strength is achieved with

the high manganese content. Its non-magnetic properties are vital in specialist applications like submarine hulls and minesweepers.

Applications include:

Offshore oil and gas connectors and couplings, chemical storage vessels, marine drive shafts, pump shafts,

valves, yacht rigging, submarine hulls.
