| Precipitation Hardening Steel: | PH15-7Mo S15700 Stainless | Product: | PH15-7Mo S15700 Cold Rolled Stainless Steel Sheets And Strips |
|---|---|---|---|
| Size: | 0.1~3.0X420mm | Delivery State: | Condition A, C |
| Surface: | Bright | ||
| High Light: | stainless strip steel,1.4028 stainless steel |
||

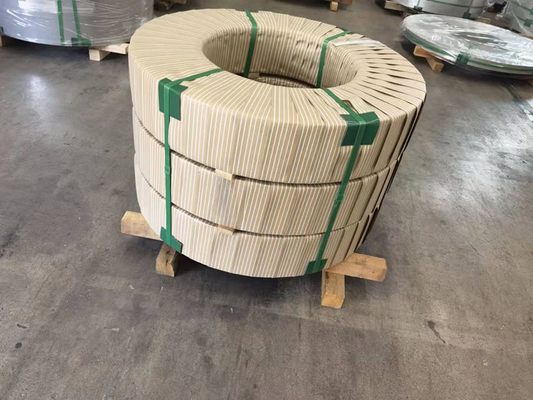

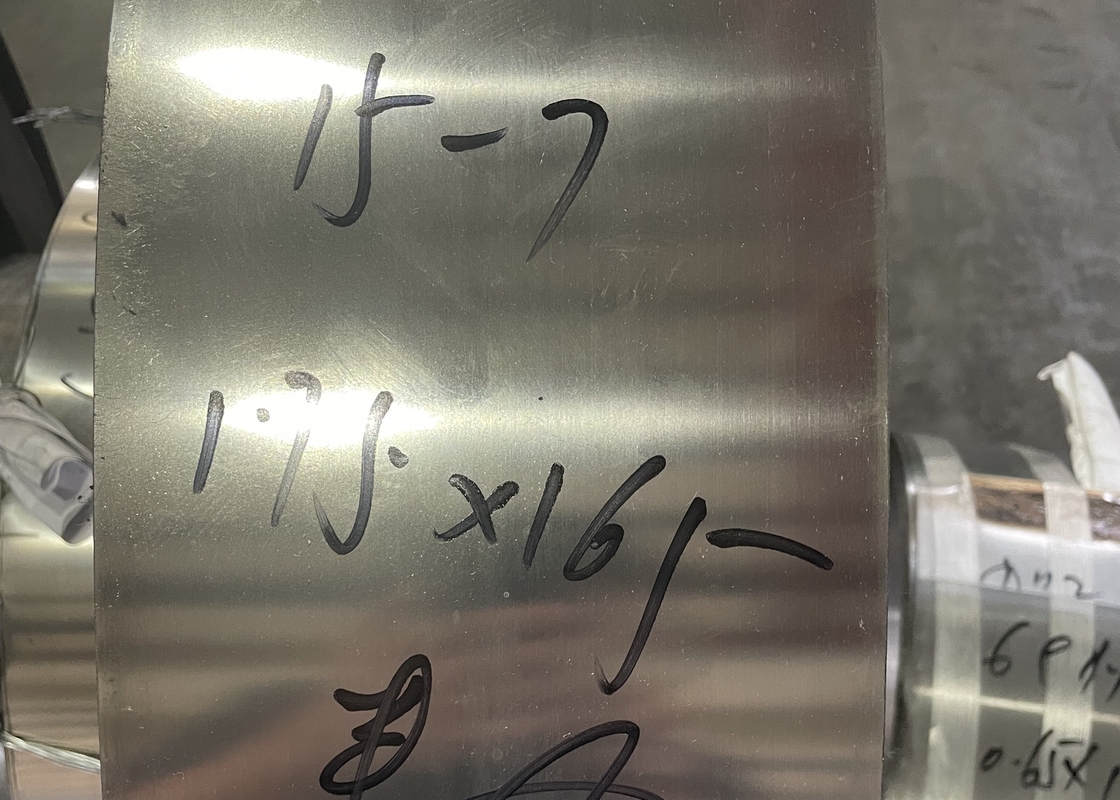

PH15-7Mo S15700 Cold Rolled Stainless Steel Sheets And Strips
ASTM A693-2016 Standard Specification for Precipitation-Hardening Stainless and Heat-Resisting Steel Plate, Sheet, and Strip
| UNS | Type | C | Mn | P | S | Si | Cr | Ni | Al | Mo | Ti | Cu |
| S17400 | 630 | 0.07 | 1.00 | 0.040 | 0.030 | 1.00 | 15.0~17.5 | 3.0~5.0 | ||||
| S17700 | 631 | 0.09 | 1.00 | 0.040 | 0.030 | 1.00 | 16.0~18.0 | 6.5~7.7 | 0.75~1.50 | |||
| S15700 | 632 | 0.09 | 1.00 | 0.040 | 0.030 | 1.00 | 14.0~16.0 | 6.5~77 | 0.75~1.50 | 2.00~3.00 | ||
| S35000 | 633 | 0.07~0.11 | 0.50~1.25 | 0.040 | 0.030 | 0.50 | 16.0~17.0 | 4.0~5.0 | 2.5~3.2 | |||
| S35500 | 634 | 0.10~0.15 | 0.50~1.25 | 0.040 | 0.030 | 0.50 | 15.0~16.0 | 4.0~5.0 | 2.5~3.2 | |||
| S17600 | 635 | 0.08 | 1.00 | 0.040 | 0.030 | 1.00 | 16.0~17.5 | 6.0~7.5 | 0.40 | 0.40~1.20 | ||
| S36200 | XM-9 | 0.05 | 0.50 | 0.030 | 0.030 | 0.30 | 14.0~14.5 | 6.5~7.0 | 0.1 | 0.3 | 0.6~0.90 | |
| S15500 | XM-12 | 0.07 | 1.00 | 0.040 | 0.030 | 1.00 | 14.00~15.5 | 3.5~5.5 | 2.5~4.5 | |||
| S13800 | XM-13 | 0.05 | 0.20 | 0.010 | 0.008 | 0.10 | 12.3~13.2 | 7.5~8.5 | 0.9~1.35 | 2.00~2.50 | ||
| S45500 | XM-16 | 0.05 | 0.50 | 0.040 | 0.030 | 0.50 | 11.0~125. | 7.5~9.5 | 0.5 | 0.8~1.4 | 1.5~2.5 | |
| S45000 | XM-25 | 0.05 | 1.00 | 0.030 | 0.030 | 1.00 | 14.0~16.0 | 5.0~7.0 | 0.5~1.0 | 1.25~1.75 | ||
| S46500 | - | 0.02 | 0.25 | 0.015 | 0.010 | 0.25 | 11.0~12.5 | 10.8~11.2 | 0.75~1.25 | 1.50~1.80 | ||
| S46910 | - | 0.030 | 1.00 | 0.030 | 0.015 | 0.70 | 11.0~13.0 | 8.0~10.0 | 0.15~0.50 | 3.0~5.0 | 0.50~.20 | 1.5~3.5 |
Type PH15-7Mo is a semi-austenitic precipitation-hardening stainless steel that provides
high strength and hardness, good corrosion resistance and minimum distortion on heat treatment.
It is easily formed in the annealed condition and develops an effective balance of properties by simple
heat treatments.
For applications requiring exceptionally high strength, cold-reduced PH15-7Mo Stainless Steel in
Condition CH 900 is particularly useful for applications permitting limited ductility and workability.
PH15-7Mo stainless alloy is particularly beneficial for a wide range of applications that include retaining
rings, springs, diaphragms, aircraft bulkheads, welded and brazed honeycomb paneling
and other aircraft components requiring high strength at elevated temperatures.
AVAILABLE FORMS
PH15-7Mo Stainless Steel sheet and strip.
Material is supplied in Condition A, ready for fabrication by the user.
Sheet and strip material 0.050" (1.27 mm) and thinner are
also produced in the hard-rolled Condition C for applications requiring maximum strength.
