Product Details:
Payment & Shipping Terms:
|
| Grade: | EN 1.4310, DIN X10CrNi18-8 | Material: | DIN EN 10151 Precision Stainless Spring Steel Strip 1.4310 X10CrNi18-8 |
|---|---|---|---|
| Size: | 0.02~1.5x5~680mm | Delivery State: | ANN, 1/4H, 1/2H, 3/4H, FH, EH, SH |
| Surface: | 2B, 2R | Edge: | Cut, Round Corner, Deburred |
| High Light: | stainless steel precision strip,stainless steel foil |
||
DIN EN 10151 Precision Stainless Spring Steel Strip 1.4310 X10CrNi18-8
DIN 1.4310 is a corrosion resistant stainless steel with good formability in soft condition.
The work hardening is greater than other austenitic stainless steels.
DIN 1.4310 stainless is the basis for the excellent usability for spring strip with high tensile strength.
Stainless 1.4310 in annealed condition shows no magnetism and becomes slightly magnetic when is cold formed.
Equivalent
|
PRODUCT STANDARD JIS G4313 Cold rolled stainless steel strip for springs
MATERIAL STANDARD JIS SUS301-CSP |
Chemical composition ( typical weight % )
| Grade | C | Si | Mn | Cr | Ni | Mo |
| 1.4310, X10CrNi18-8 | 0.10 | 0.60 | 1.00 | 16.70 | 7.20 | 0.30 |
Delivery forms

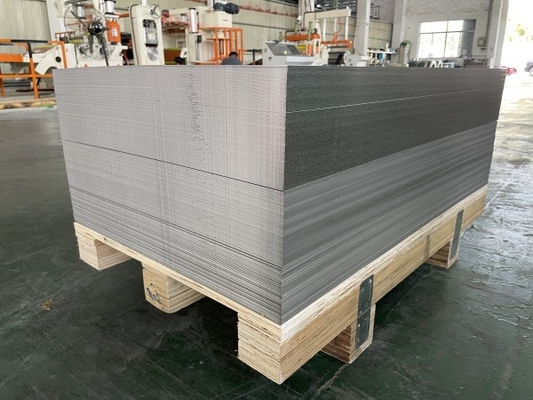

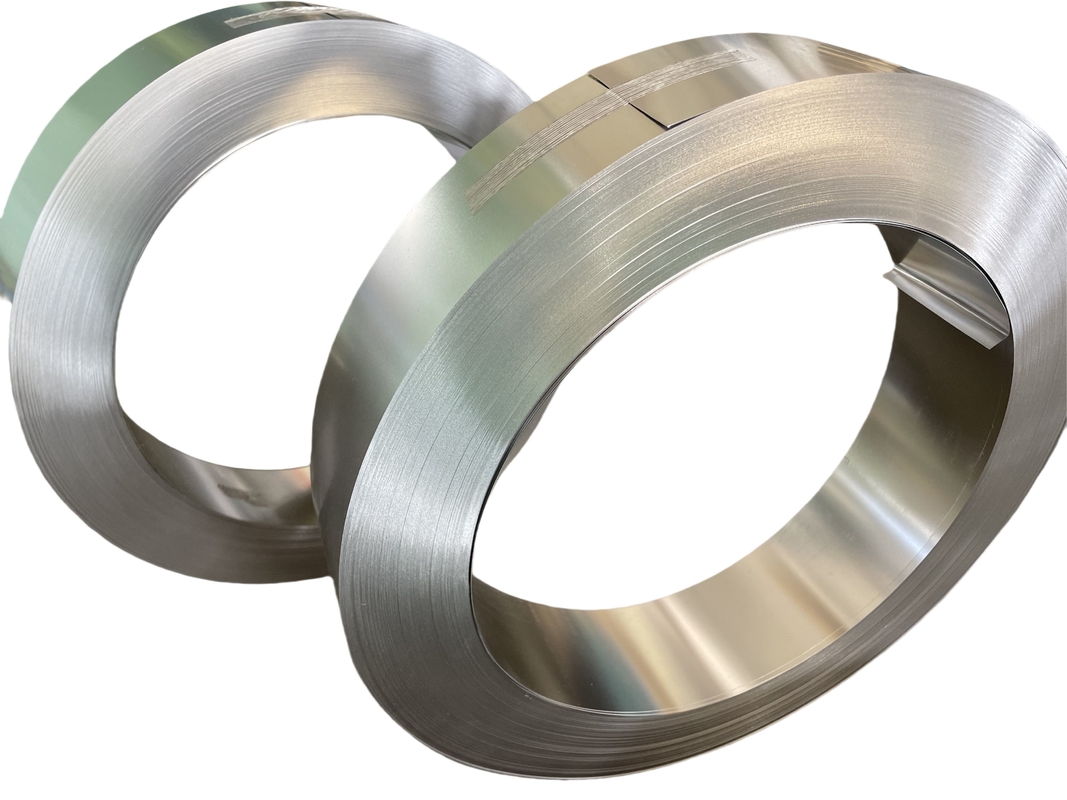

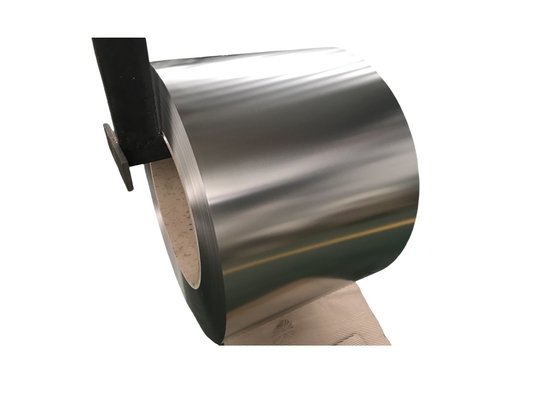

precision strip, narrow strip, slit strip, thin strip
Dimension
Thickness: 0.02 to 1.5 mm
Width: 5 to 680 mm
Tolerances are acc. to DIN EN 9445
Closer tolerances on request.
Typical Application
In soft condition:
Stamping and Bending Parts
Simple Deep-Drawing-Parts
In hard condition:
Stamping and Bending Parts
Springs
Membranes
Click Domes
