Product Details:
Payment & Shipping Terms:
|
| Grade: | EN 1.4034, DIN X46Cr13, AISI 420C | Product: | Stainless Steel Wire EN 1.4034 DIN X46Cr13 |
|---|---|---|---|
| Dia: | 0.3~16.0mm, Other Sizes On Request | Delivery State: | Annealed, Light Drawn, Hard Drawn |
| Surface: | Bright, Ground | Form: | Stainless Steel Wire In Coil, Spool, Cut Lengths Bar |
| High Light: | stainless steel spring wire,stainless steel coil wire |
||
Cold Drawn Stainless Steel Wire EN 1.4034 DIN X46Cr13
1.4034 is categorized as martensitic stainless steel.
It is used after quenching and tempering to manufacture cutting tools, measuring instruments,
and a range of other uses in mechanical engineering.
A further typical application for 1.4034 is in the manufacturing of surgical instruments; scissors,
bone cutters, tweezers, shavers, and curettes. Since it is very hard, has high corrosive resistivity,
and is easily polished, this material is used wherever a pure or smooth surface is required.
Standards
| EN | DIN | ASTM | JIS |
| 1.4034 | X46Cr13 | AISI 420C, UNS S42000 | - |
Chemical composition ( weight % )
| Grade | C | Si | Mn | Cr |
| 1.4034 | 0.43~0.50 | 1.00 | 1.00 | 12.50~14.50 |
|
We also provide 1.4034 stainless in high chromium content, defined as 1.4034YK. and 1.4034 stainless with high content of S, 1.4035 or 1.4034+S |
| Grade | C | Si | Mn | Cr | S |
| 1.4034YK | 0.43~0.50 | 1.00 | 1.00 | 13.00~14.50 | 0.030 max |
| 1.4034+S, 1.4035 | 0.43~0.50 | 1.00 | 1.00 | 12.50~14.50 | 0.15~0.30 |

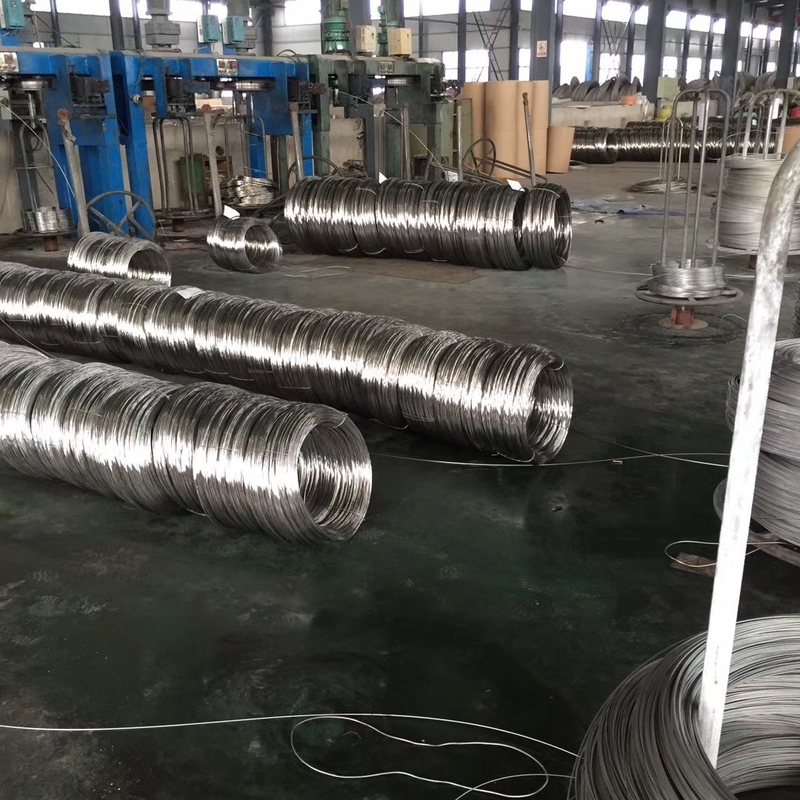

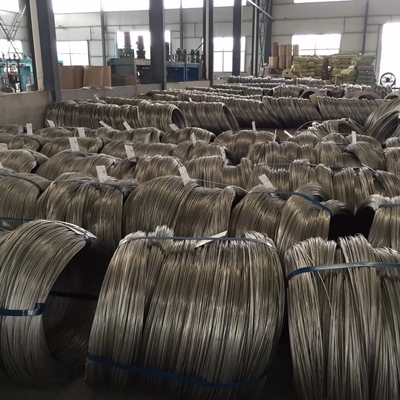

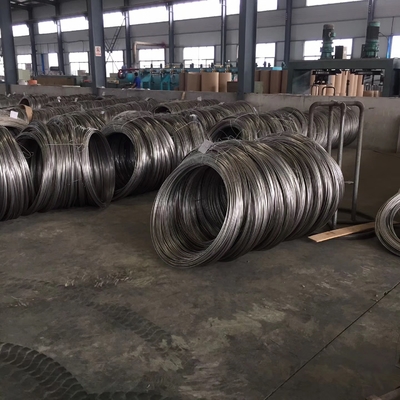

Forms of supply
Stainless steel drawn wire in coil, spool, cut lengths bar
dia 0.3~16.0mm, other sizes on request
Please welcome to contact our sales.
