17-4PH Stainless Steel Sheet ( Material 630 Stainless Steel Strip Coil )

Guanglu is really a professional supplier, they always give us technical advice and provide good quality products with very competitive price!

—— Thomas Hoover

We received your goods last thursday and we are very pleased with the quality of your products.

—— Lionel Lobo

I'm Online Chat Now

17-4PH Stainless Steel Sheet ( Material 630 Stainless Steel Strip Coil )

17-4PH Stainless Steel Sheet ( Material 630 Stainless Steel Strip Coil )
17-4PH Stainless Steel Sheet ( Material 630 Stainless Steel Strip Coil ) 17-4PH Stainless Steel Sheet ( Material 630 Stainless Steel Strip Coil ) 17-4PH Stainless Steel Sheet ( Material 630 Stainless Steel Strip Coil )

Large Image :  17-4PH Stainless Steel Sheet ( Material 630 Stainless Steel Strip Coil )

Product Details:
Place of Origin: China
Brand Name: Daway
Certification: SGS
Model Number: 17-4PH
Payment & Shipping Terms:
Minimum Order Quantity: 500 kgs
Price: Negotiable

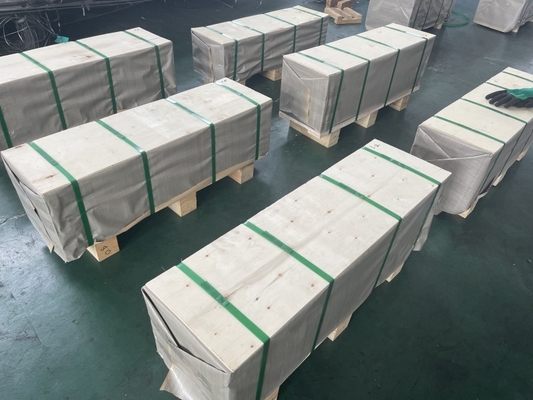

Packaging Details: Seaworthy
Delivery Time: 15 days after receipt 30% of value
Payment Terms: T/T
Supply Ability: 200 tons per month
Detailed Product Description
Material: 17-4PH, 630 Product: 17-4PH Stainless Steel Sheet, Strip And Coil
Size Range: 0.1~10.0X420mm Delivery Condition: Solution Annealed

17-4PH Stainless Steel Sheet ( Material 630 Stainless Steel Strip Coil )



17-4PH is a martensitic precipitation hardening stainless steel,

equivalent grades 0Cr17Ni4Cu4Nb, SUS630, EN 1.4542.



The intensity level of the alloy can be adjusted by changes in heat treatment process.

Martensitic transformation and the formation of precipitation hardening phase by aging treatment is

the main means to strengthen the alloy.

17-4PH stainless alloy has good anti-attenuation, anti-fatigue, anti-corrosion and nice resistance to

water droplets properties.



AISI, UNS JIS GB EN, DIN
630, S17400, 17-4PH SUS630 0Cr17Ni4Cu4Nb 1.4542, X5CrNiCuNb16-4



Chemical composition %

C Si Mn P S Cr Ni Cu Nb
0.07 max. 1.00 max. 1.00 max. 0.040 max. 0.030 max. 15.00~17.50 3.00~5.00 3.00~5.00 0.15~0.45



Heat Treatment
Solution heat treatment at 1020~1060℃, rapid cooling; then aging treatment, air cooling.

Condition Aging at 480℃ Aging at 550℃ Aging at 580℃ Aging at 620℃
Tensile strength ( MPA ) ≥1310 ≥1060 ≥1000 ≥930
Yield strength ( 0.2%, MPA ) ≥1180 ≥1000 ≥865 ≥725
Elongation ( % in 2'' ) ≥10 ≥12 ≥13 ≥16
Reduction of area ≥40 ≥45 ≥45 ≥50



Form of supply

630 ( 17-4PH ) Stainless steel sheet, plate, strip and coil
